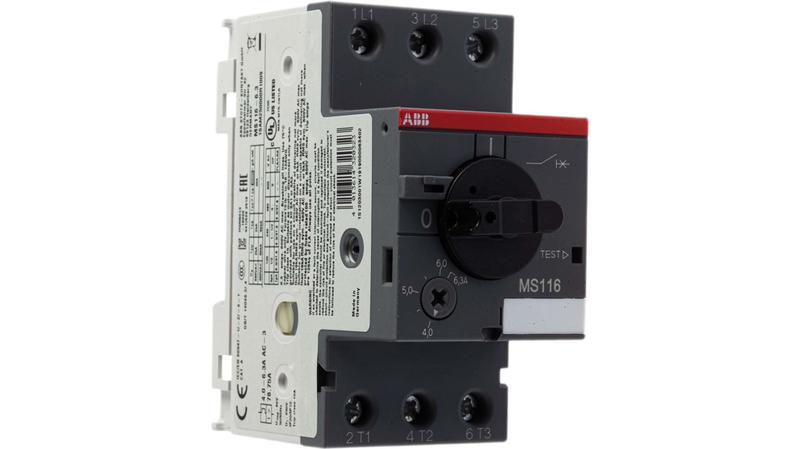

1SAM250000R1009 MS116-6.3 ABB 6.3 A Motor Protection Circuit Breaker

Starters_x000D_ Covers motors up to 16A (7.5kW)_x000D_ Local isolator_x000D_ Protects against overloads, short circuits, phase failure and faults in cabling or wiring_x000D_ These Motor Starters can be used in conjunction with ABB Contactors, stock no. 445-0897 typically_x000D_ Accessories available from auxiliary/signal contacts to under voltage releases. Using an adaptor, motor starter combinations can be easily formed utilising contactors from ABB's mini and A series range; see typically 445-0897 and 445-0825_x000D_ Standards_x000D_ IEC 60 947-1/IEC 60 947-2/EN60 P47-1/EN60 (47-2)_x000D_ Approvals_x000D_ UL, CSA_x000D_ ABB Motor Protection Circuit Breaker, 6.3A Current Rated, Screw Terminals - MS116 Series - MS116-6.3_x000D_ Need a device to safeguard your motor and equipment from faults? Choose this motor protection circuit breaker from ABB. There's no need for a fuse when using this component as its 10A trip class defends your circuitry from electrical overload. It has an ergonomic rotary handle on the front of the unit that makes it easy to turn your equipment on or off. For versatility, this unit handles both single-phase and three-phase applications. You can install it simply onto a DIN rail and use the screw terminals to make secure connections without specialist equipment._x000D_ • IP20-rated housing means it's tamper-proof and resists dust and small objects over 12mm_x000D_ • Compact dimensions of 90 (H) x 45 (W) x 85.6mm (D) make it space-efficient_x000D_ • 3-pole design allows multiple connections for increased productivity_x000D_ • Lifespan of up to 100,000 cycles for long-lasting use_x000D_ • Ambient air temperature compensation maintains optimal performance in changeable conditions_x000D_ Applications_x000D_ • Smaller motors under 25HP_x000D_ • Industrial fans_x000D_ • Electrical pumps_x000D_ Is a motor protection circuit breaker the same as a manual motor protector?_x000D_ Yes, a motor protection circuit breaker or MPCB is another name for a manual motor protector.
