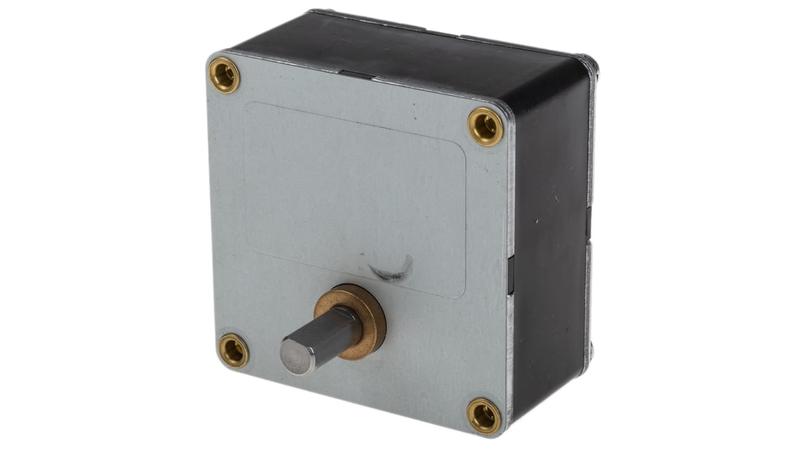

81037006 Crouzet Geared, 3 W, 24 V, 5 Nm, 8 rpm, 8mm Shaft Diameter

32 & 42mm Diameter Motors & Gearboxes_x000D_ Low to medium power dc. motors fitted with a square mounting flange, centring bush and drive pinion. This allows simple and quick attachment to a 65mm square gearbox. All motors have sintered bronze bearings lubricated for life_x000D_ 32mm diameter motors have built-in interference suppression, whilst the 42mm diameter motors have replaceable motor brushes (stock no. 320-613)_x000D_ Gearboxes have metal end plates, with a plastic body between and metal gears. The user can select the appropriate combination of motor voltage, power and gearbox output speed which meets their requirements_x000D_ Gearbox dimensions: height 65mm x width 65mm, shaft diameter 8mm_x000D_ Note_x000D_ For applications where stall conditions may occur, it is recommended that a current limiter is fitted to this combination._x000D_ Crouzet DC Geared Motor_x000D_ The Crouzet DC geared motor from the RC65 series has a right angle gearhead. It has a maximum output torque of 5Nm for long service life and a power rating of 3W. Its output speed is 8.6rpm._x000D_ Features and Benefits_x000D_ • Shaft diameter 8mm_x000D_ • Straight shaft angle_x000D_ • Supply voltage 24VDC_x000D_ Applications_x000D_ • Billboards_x000D_ • Lift doors_x000D_ • Medical equipment_x000D_ • Pumps_x000D_ • Valves_x000D_ • Water treatment
