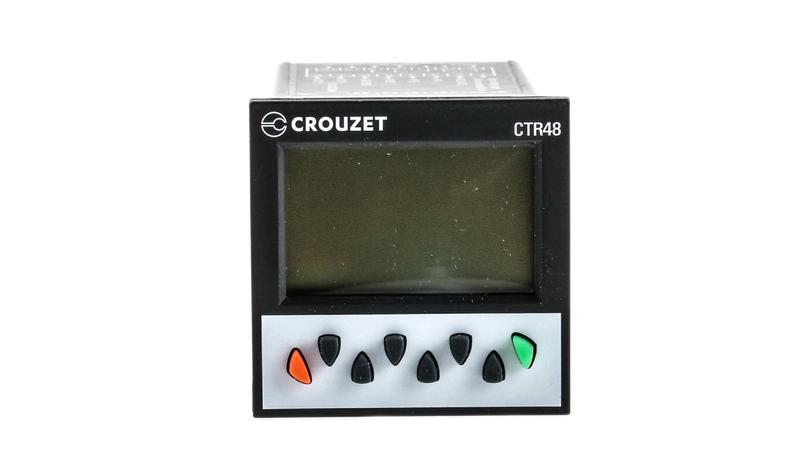

87621121 Crouzet CTR48 Counter, 6 Digit, 40kHz, 30 V dc

Crouzet Digital Counter_x000D_ The Crouzet CTR48 series digital counter is a preset, multifunction, backlit, and panel mounted device device. This counter has a voltage input and relay output. It has a 6-digit LCD display and maximum input frequency 40KHz. The display ranges between -999999 and +999999. This counter has a supply voltage rating of 30VDC. It supports various operating modes such as up, down, command, individual, and quadrature. It can be used as a counter, tachometer, chronometer, multi-totalizer, batch counter, and preselection totalizer._x000D_ Features and Benefits_x000D_ Simple parameter setting, configuration using text menus_x000D_ Easy modification of presets_x000D_ Scaling factor_x000D_ 5A changeover relay and solid state output_x000D_ Removable connectors_x000D_ Option of locking the keypad, completely or partially (preset, programming)_x000D_ Accessories include 72 x 72, 55 x 55 cut-out or a DIN rail adaptor_x000D_ Panel cut out dimensions are 45mm x 45mm_x000D_ Plug-in screw terminal connection_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly line_x000D_ Certifications_x000D_ UL approved_x000D_ CE certified
