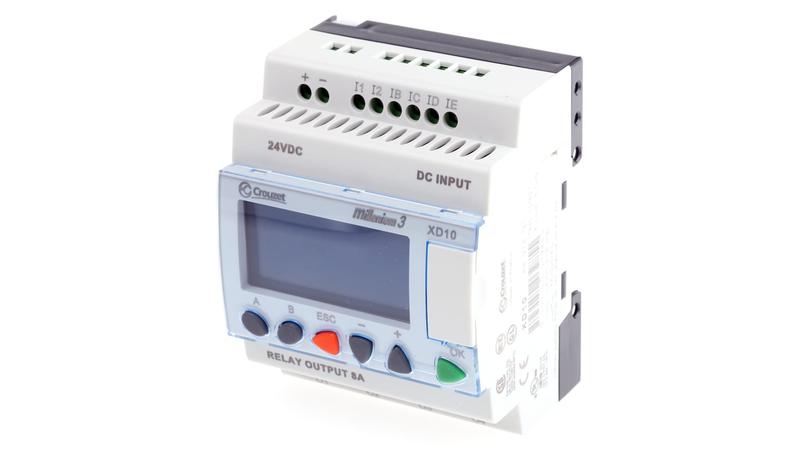

88974141 Crouzet, Millenium 3, Logic Module - 6 Inputs, 4 Outputs, Relay

Crouzet Logic Module_x000D_ The Crouzet Millenium 3 series logic module is the latest generation of the Millenium expandable version XD10 series with 6 digital(including 4 analogues) inputs and 4 relays outputs of 8A contact current rating This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 24VDC._x000D_ Crouzet Millenium 3:_x000D_ The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:_x000D_ The Compact Controller has around twice the memory size_x000D_ The Expandable Controller has around four times the memory size_x000D_ 10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)_x000D_ 18 character (formerly 12), 4 line display with scrolling text and bar graph functionality_x000D_ Choice of ladder or function block programming._x000D_ Features and Benefits_x000D_ Operating temperature ranges between -20°C and +55°C_x000D_ Battery backup_x000D_ Highly visible blue LCD with 4 lines of 18 characters_x000D_ and configurable backlighting_x000D_ Allow the use of the entire library of specific functions_x000D_ blocs of the software workshop_x000D_ Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR_x000D_ (0-20 mA/Pt100 with converters)_x000D_ Choice of ladder or function block programming_x000D_ Serial, USB port communication_x000D_ Protects program_x000D_ Selective configuration_x000D_ Memory back-up using EEPROM_x000D_ ESD protected_x000D_ Expandable controller_x000D_ LCD display_x000D_ Memory size 368bits_x000D_ Compact controller_x000D_ Applications_x000D_ Automatic washing equipment_x000D_ Agricultural machinery_x000D_ Managing air conditioning_x000D_ Heating systems_x000D_ Certifications_x000D_ CE_x000D_ UL approved_x000D_ UL approved_x000D_ CSA_x000D_ IP40 rated
