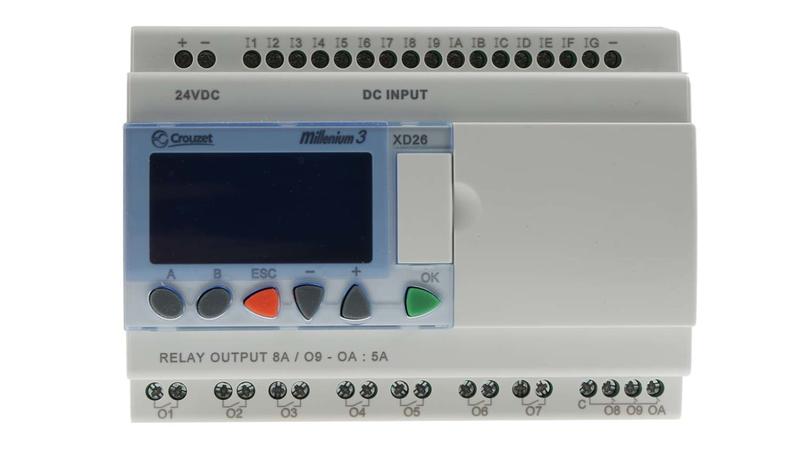

88974161 Crouzet, XD26, Logic Control - 16 Inputs, 10 Outputs, Relay, For Use With XD26 Series

Crouzet PLC_x000D_ The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version XD26 series with 16 digital (including 6 analogues) inputs, 8 relay outputs of 8A current rating and 2 relay outputs of 5A current rating. These PLCs have modular versions, designed for application-specific functions. It is the easiest programmable module to use on the market. It enables the control and monitoring of machines and automation installations with up to 50 I/O. This product also offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors, and disabled access ramps._x000D_ Crouzet Millenium 3_x000D_ :_x000D_ The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:_x000D_ The Compact Controller has around twice the memory size_x000D_ The Expandable Controller has around four times the memory size_x000D_ 10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)_x000D_ 18 character (formerly 12), 4 line display with scrolling text and bar graph functionality_x000D_ Choice of ladder or function block programming_x000D_ Features and Benefits_x000D_ Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting_x000D_ Allow the use of the entire library of specific functions blocks of the software workshop_x000D_ Extended temperature ranges between -20 °C and 70 °C_x000D_ Analogue inputs are potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)_x000D_ Open to XN network communication extensions, digital I/O, analogue, Pt100 extensions_x000D_ Supported communication protocols are USB, Ethernet, and Modbus_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobiles industry_x000D_ Certifications_x000D_ CE_x000D_ UL listed_x000D_ CSA certified_x000D_ GL certified_x000D_ IEC/EN 61131-2 (Open equipment)_x000D_ IEC/EN 61131-2 (Zone B)_x000D_ IEC/EN 61000-6-2_x000D_ IEC/EN 61000-6-3_x000D_ IEC/EN 61000-6-4_x000D_ IP40_x000D_ IP20
