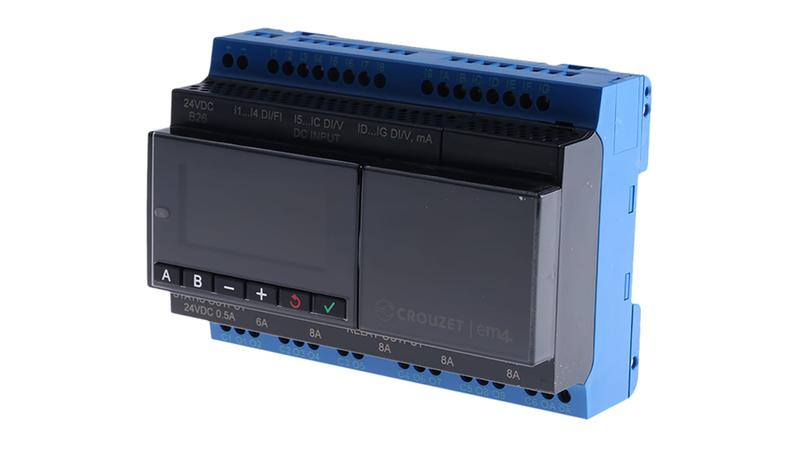

88981106 Crouzet, em4 Local, PLC CPU Starter Kit - 16 Inputs, 10 Outputs, Relay, Static, For Use With em4 Series, Modbus with

Crouzet PLC CPU_x000D_ The Crouzet em4 series alerts B26 nano programmable logic controller (PLC) has 16 digital inputs (including 4 High Speed, 4 analogue 0-10V/potentiometers and 4 analogue 0-10 V/4-20mA) and 10 digital outputs (including 2 solid states 0.5A PWM, 2 relays 6A and 6 relays 8A). It has a supply voltage rating of 24VDC with 16 digital inputs (4digital, 12 digital/analogue) and 10 digital outputs (2 PWM, 8 relays). This starter kit comes with the very compact and easy to program PLC, with 26 I/Os. It communicates with maximum16 Ethernet or with other devices with the Ethernet Modbus TCP/IP standard protocol client and server. It is possible to program and debug your PLC from anywhere on the Ethernet local network. It also provide simplified addressing process between two em4._x000D_ em4 Ethernet starter kit includes:_x000D_ 1. em4 Ethernet nano-PLC CPU_x000D_ 2. 3m Programming Cable PC_x000D_ 3. em4 soft (USB Key)_x000D_ Features and Benefits_x000D_ 4 lines with 18 characters per line with highly visual display_x000D_ Large memory space for application and remote functions program_x000D_ Manage timed or trigger based data exchange between devices via Modbus TCP/IP Network_x000D_ Receive scheduled simple data logs via email or FTP_x000D_ Send email alerts fully controlled by the application program_x000D_ Operating temperature ranges between -20°C and 60°C_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ CE_x000D_ cULus listed_x000D_ IEC/EN 61000-6-1,2,3 & 4 in accordance with 2001/108/EC EMC directive_x000D_ IP40 on front panel_x000D_ IP20 on terminal block
