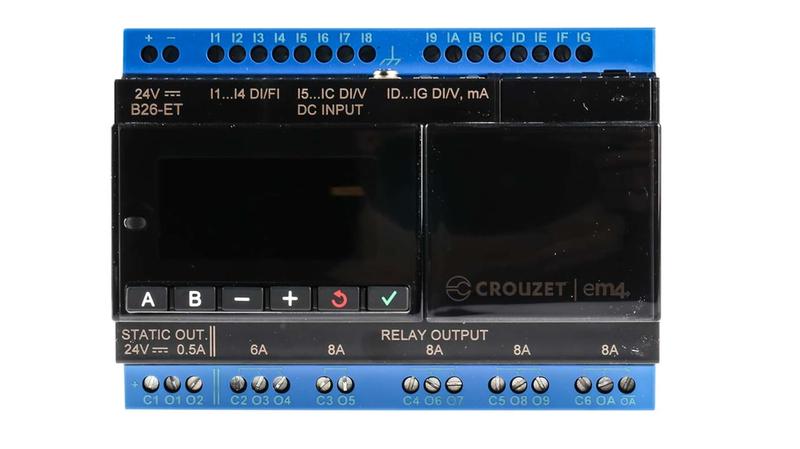

88981133 Crouzet, em4, PLC CPU, 16 x Inputs, 2 (PWM), 8 (Relay) Outputs, PWM, Relay

Crouzet PLC CPU_x000D_ The Crouzet em4 series nano programmable logic controller (PLC) B26-ET series with 16 digital (including (including 4 High Speed, 8 analogues 0-10 V/potentiometers_x000D_ and 4 analogues 0-10 V/4-20 mA) inputs and 10 digital (including 2 solid states 0.5A PWM, 2 relays 6A and 6 relays 8A) outputs. It has a supply power rating of 24Vdc with a highly accurate current range between 4mA and 20mA. It has a compact design with 16 digital, analogue inputs and 10 solid-state relay outputs. It is most intuitive and easy to use nano-PLC on an Ethernet network. With the Crouzet it can communicate with up to 16 em4 Ethernet or other devices with the Ethernet Modbus TCP/IP standard protocol client and server. It is possible to program and debug this PLC from anywhere on the Ethernet local network. It also has a simplified addressing process between two em4._x000D_ Features and Benefits_x000D_ 4 lines with 18 characters per line with high visual display_x000D_ Large memory space for application and remote functions program_x000D_ Manage timed or trigger based data exchange between devices via Modbus TCP/IP Network_x000D_ Receive scheduled simple data logs via email or FTP_x000D_ Send email alerts fully controlled by the application program_x000D_ Operation temperature ranges between 20°C and 60°C_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ CE_x000D_ cULus listed_x000D_ IEC/EN 61000-6-1,2,3 & 4 in accordance with 2001/108/EC EMC Directive_x000D_ IEC/EN 61131-2_x000D_ IP40 on front panel rated_x000D_ IP20 on terminal block rated
