| Casing/button colour | Black |
| Functions | latch |
| Operation type | Rotary switch |
| Switching angle | 1 x 90 ° |
| Mounting type | Structure |
| Number of pins | 3 |
| Connection | Screws |
| Switching voltage | 690 |
| Switching current (max.) | 25 |
| Power | 11 |
| Min. temperature | -25 |
| Max. temperature | +50 |
| Length | 100 |
| Width | 150 |
| Height | 200 |
| Content | 1 |

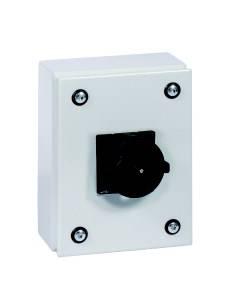

| Type | P1-25/SE1/SVB-SW |
| Dim | (L x W x H) 100 x 150 x 200 mm |
| Rated operation power at AC-3, 400 V | 7.5 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 25 |
| Number of poles | 3 |
| Rated operating voltage | 690-690 |
| Conditioned rated short-circuit current Iq | 0 |
| Degree of protection (IP), front side | IP65 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | TRUE |
| Motor drive integrated | FALSE |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | FALSE |
| Type of control element | Door coupling rotary drive |
| Version as main switch | FALSE |
| Version as safety switch | FALSE |
| Version as maintenance-/service switch | TRUE |
| Rated operation power at AC-23, 400 V | 13 |
| Rated short-time withstand current lcw | 0.64 |
| Colour control element | Black |
| Suitable for floor mounting | TRUE |
| Suitable for front mounting 4-hole | FALSE |
| Suitable for front mounting centre | FALSE |
| Suitable for distribution board installation | FALSE |
| Suitable for intermediate mounting | FALSE |
| Max. rated operation voltage Ue AC | 690 |
| Motor drive optional | FALSE |
| Voltage release optional | FALSE |
| Device construction | Complete device in housing |
| Rated permanent current at AC-21, 400 V | 25 |
| Switching power at 400 V | 11 |
| Version as reversing switch | FALSE |
| Rated permanent current at AC-23, 400 V | 25 |
| Degree of protection (NEMA) | 12 |
| Product type | Limit switch |
