| Casing/button colour | White |
| Operation type | Rotary switch |
| Mounting type | DIN rail |
| Switch position | 2 x (On)/Off/On |
| Print motif | Manual/0/Auto |
| Number of pins | 2 |
| Connection | Screw terminals |
| Switching voltage | 440 |
| Switching current (max.) | 20 |
| Min. temperature | -40 |
| Max. temperature | +60 |
| Depth | 60 |
| IP rating | IP20 |
| Content | 1 |

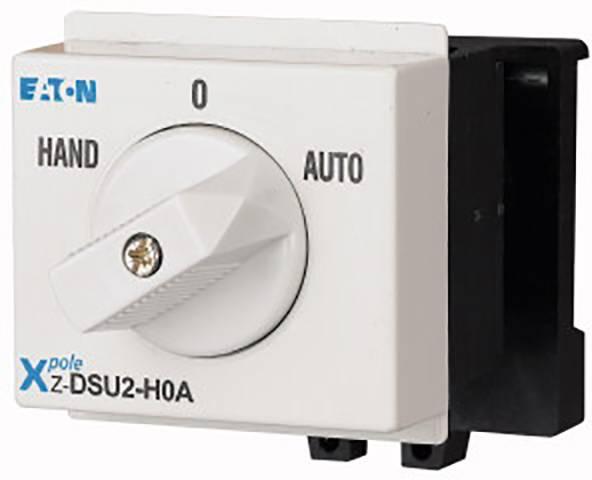

| Type | Z-DSU2-H0A |
| Voltage type | AC |
| Switching function | Two-way switch |
| With signal lamp | FALSE |
| Built-in depth | 60 |
| Rated current | 20 |
| Rated voltage | 690 |
| Max. lamp power | 0 |
| Number of poles | 2 |
| Lamp type | Other |
| Short-circuit breaking capacity (Icw) | 10 |
| Rated switching capacity | 0 |
| Width in number of modular spacings | 3 |
| Colour calotte | Other |
| Lamp socket | Other |
| Min. rated voltage | 440 |
| Degree of protection (IP) | IP20 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
| Forced segregation (according to DIN VDE 0113) | FALSE |
| Product type | Rotary switch |
