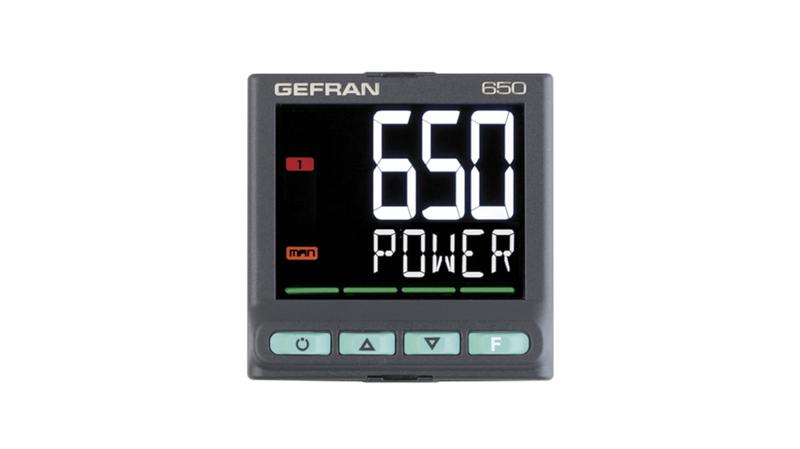

650-D-RR0-00000-1-G Gefran 650 PID Temperature Controller, 48 x 48mm, 3 Output Logic, Relay, 100 → 240 V ac Supply Voltage

Gefran PID Temperature Controller_x000D_ The Gefran 650 series temperature controller has supply voltage ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has 2 relay outputs and 1 logic output. The controller is highly customisable and adapts to the user's application. The flexible customisation of the controller integrates perfectly with the look of the machine interface. The PID is clear and easy to read with the easy configuration for manual-free programming._x000D_ Features and Benefits_x000D_ 16 function block applications_x000D_ Advanced tuning of control parameters_x000D_ Different password levels_x000D_ Easy, guided configuration, copy/paste parameters even with power-off_x000D_ Operator interface with large LCD display, customizable, with choice of colours_x000D_ Preventive maintenance with energy counters (kWh) and load switching_x000D_ Relay, logic, isolated analogy outputs_x000D_ Remote set point input_x000D_ Removable faceplate for immediate replacement_x000D_ RS485 serial communication in Modbus RTU_x000D_ Sampling time 60ms_x000D_ Scrolling diagnostics messages, configurable, in the selected language_x000D_ Timer, set point and algorithm programmer for controlling motorized valves_x000D_ Universal input configurable for thermocouples, resistance thermometers, linear inputs_x000D_ Up to two CT inputs for interrupted load diagnostics_x000D_ Certifications_x000D_ CE certified_x000D_ EAC_x000D_ FM certified_x000D_ UL approved
