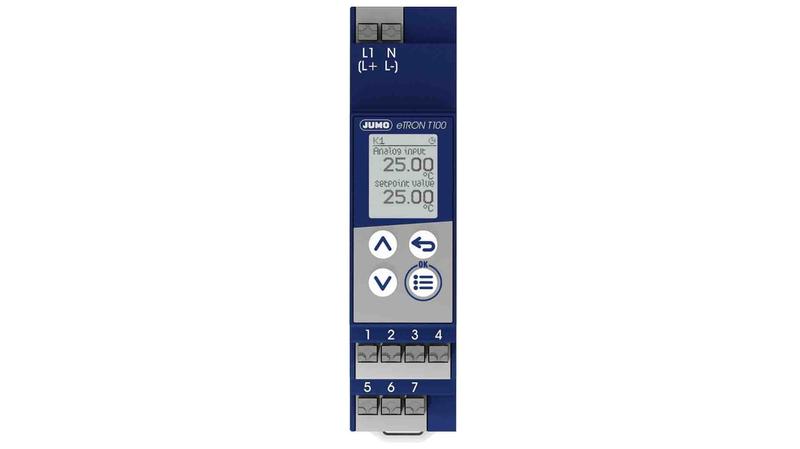

701052/8-02-02-00/000 Jumo eTRON T100 DIN Rail On/Off Temperature Controller, 90 x 22.5 x 62mm 1 Input, 1 Output Relay 10 A changeover, 230 V

The electronic thermostat of the JUMO measures the temperature via The electronic thermostat measures the temperature via resistance thermometer, thermocouple or current 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the set switching behavior. With the timer function, the thermostat function (heating or cooling) can be started or also limited in time. The switching states of the relay and the digital output as well as the actual and setpoint values are shown simultaneously on the display. It has a resolution of 64 x 80 pixels, is backlit and can be switched to the national languages German, English, French and Spanish. The device is operated via 4 keys on the front panel. The electrical connection is made via PCB terminals with push-in technology. A PhotoMOS® relay for limit value monitoring or a digital input for connecting a floating contact are available as options. A setup program for easy configuration, parameterization and readout of the data logger is available as an accessory._x000D_ Special features_x000D_ - 5 different measurement input groups available_x000D_ - intuitive operation and configuration on the device or with the setup program via USB interface_x000D_ - user level with 8 parameters_x000D_ - dot matrix display 64 x 80 pixels with 4 national languages_x000D_ - data logger function_x000D_ - service and operating hours counter_x000D_ - Connection via PCB terminals with push-in technology_x000D_ - 10A relay (changeover contact)_x000D_ - customer-specific linearization in the setup program_x000D_ - limit value monitoring_x000D_ - timer function_x000D_ - connection diagram can be called up in the LCD display
