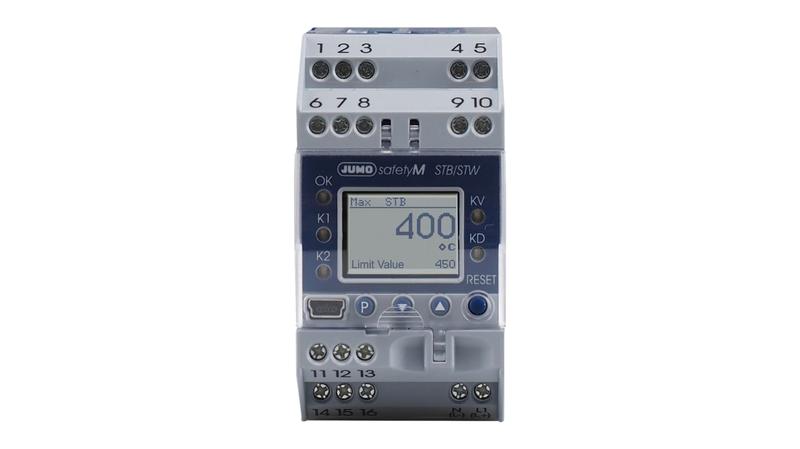

701150/8-01-0253-2001-25/005 Jumo STB/STW Temperature Limiter, 84 x 45mm 2 (Analogue) Input, 2 Output 2 Change-Over Contacts, Relay, 20 → 30

Jumo Temperature Limiter_x000D_ The Jumo STB/STW series temperature controller has supply voltage ranging from 20VAC/DC to 30VAC/DC. This controller has a width of 45mm and a height of 85mm device. It has two universal analogue inputs, two relay outputs (pre and limit alarm) and a universal analogue output. It has two pt100 programmable measuring input in a 3-wire circuit. This safety temperature limiter (STB) and the safety temperature monitor (STW) detect and avert hazards that are harmful to the environment or cause destruction of production plants and produced goods, or even cause injuries, at an early stage. Its primary task is to reliably monitor thermal processes and switch the systems to operational safe status in the event of malfunctions._x000D_ Features and Benefits_x000D_ 12 linearization can be set_x000D_ 1oo2D structure for a high degree of process safety and reliability_x000D_ Can be configured as STB or STW_x000D_ Digital input filter with adjustable filter time constant_x000D_ Internal and external unlocking possible_x000D_ LCD display with background lighting and plain text display for simplified operation_x000D_ Panel depth is 104.8mm_x000D_ Pre-alarm absolute or adjustable as a margin from the limit value_x000D_ Setup program for configuration and archiving via USB interface_x000D_ Certifications_x000D_ DIN EN 14597_x000D_ IP20 rated
