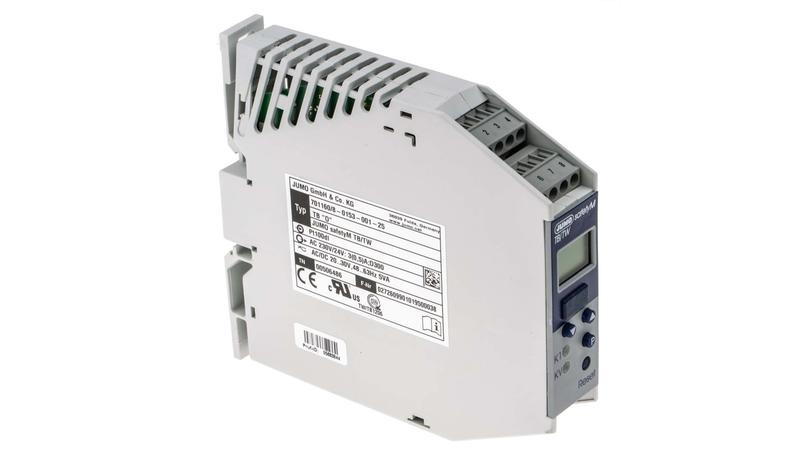

701160/8-0153-001-25 Jumo safetyM TB/TW Temperature Limiter 1 Input, 2 Output Relay, 20 → 30 V ac/dc Supply Voltage

Jumo Temperature Limiter_x000D_ The Jumo safetyM TB/TW series temperature controller has supply voltage ranging from 20VAC/DC to 30VAC/DC. This controller is a freely programmable, inverse, temperature limiting device. It has a single input and dual output relay. The measurement input is freely configurable for RTD temperature probes and thermocouples, as well as for current and voltage signals. A PC setup program is available as an accessory that can be used to set and store probe type, range, output action and inhibits._x000D_ Features and Benefits_x000D_ 17 linearization can be set_x000D_ Adjustable as absolute value or relative to limit value_x000D_ Binary output 24V/20mA for a pre-alarm signal_x000D_ Clear, easy-to-read alphanumerical display_x000D_ Configurable as TB or TW, where TW is reset automatically without any external action, whereas for TB the “external reset button” is needed_x000D_ Digital input filter with adjustable filter time constant_x000D_ DIN rail mounting_x000D_ Internal and external locking options_x000D_ Pt100 in 3-wire circuit_x000D_ Screw terminals for cable with 2.5mm² maximum_x000D_ Setup program for configuration and archive data backup_x000D_ Certifications_x000D_ EN 61326_x000D_ IP20 rated to EN 60529
