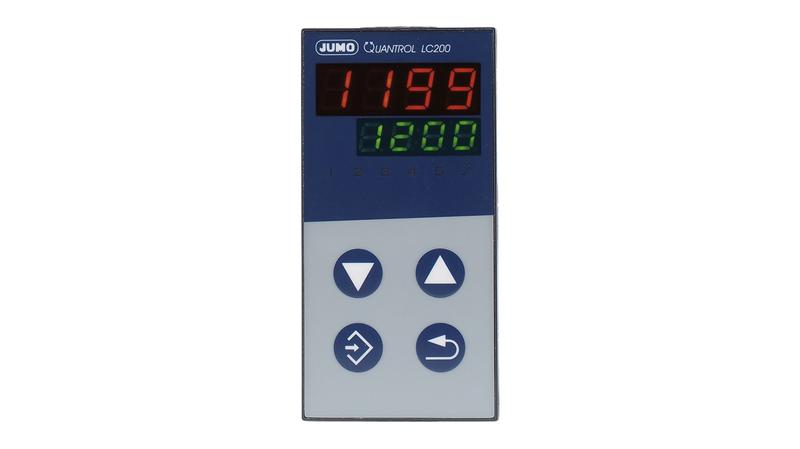

702032/8-2100-25 Jumo QUANTROL PID Temperature Controller, 48 x 96mm, 2 Output Logic, Relay, 20 → 30 V ac/dc Supply Voltage PID

Quantrol LC-Series - PID Controller_x000D_ The Jumo Quantrol is a compact, easy to use, and self-optimizing controller series._x000D_ The controller is used for two-state and three-state control applications as well as for the control of regulating valves or SCR power controllers via a continuous controller output._x000D_ The universal analog input is for RTD temperature probes, thermocouples, or current / voltage signals and can be programmed by the user._x000D_ 3 formats: 48´48mm, 48´96mm and 96´96mm_x000D_ Two seven-segment LED displays (red/green)_x000D_ The values can be displayed in °C or °F_x000D_ LED status indicator for the output_x000D_ Two-state/three-state and continuous controller (depending on version)_x000D_ Sensor monitoring_x000D_ Self-optimization (autotuning) for exact PID control_x000D_ Manual/automatic mode_x000D_ Configurable limit value monitoring (alarms)_x000D_ Setpoint changeover_x000D_ Level inhibit and key lock_x000D_ RS485 interface (Modbus RTU)_x000D_ Ramp and timer function_x000D_ Firing curve for pottery kilns_x000D_ Push-in controller insert_x000D_ Setup interface (USB Mini-B)
