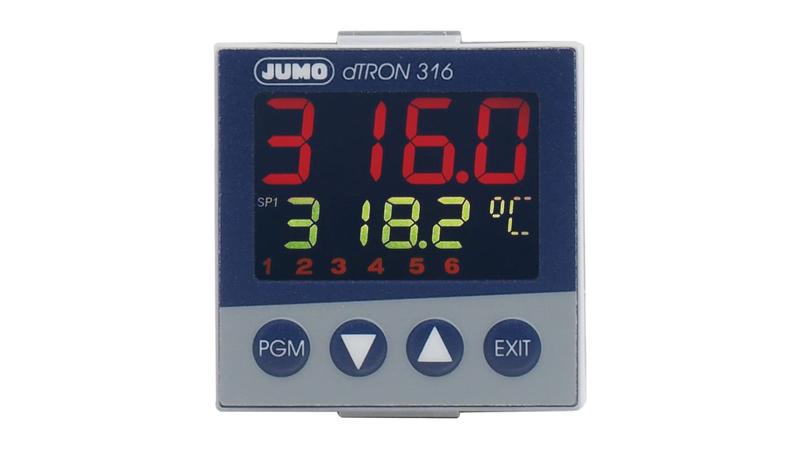

703041/181-400-23/000 Jumo dTRON PID Temperature Controller, 48 x 48 (1/16 DIN)mm 1 (Analogue) Input, 1 Output Analogue, 110 → 240 V

Jumo Temperature Controller_x000D_ The Jumo dTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 48mm(1/16 DIN) device. It has a single analogue input, two relays and two logic inputs or two logic outputs. This device gives 2 analogue outputs. This is robust equipment that includes 4, freely programmable devices in different DIN formats for controlling temperature, pressure and other process variables. The instruments can be used as 2-state, 3-state, modulating or continuous controllers. The electrical connection at the back is established via screw terminals._x000D_ Inclusions:_x000D_ Controller, seal, fastening elements, operating instructions._x000D_ Features and Benefits_x000D_ 2 self-optimisation processes_x000D_ 2 timer functions_x000D_ 4 limit comparators_x000D_ 4 programmable set points, 2 parameter sets_x000D_ Bright LCD display for viewing different process parameters_x000D_ Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)_x000D_ Maximum 2 freely programmable analogue inputs_x000D_ Minimum sampling time is 50ms_x000D_ Profibus DP interface_x000D_ Program function with 8 sections or ramp function_x000D_ Programmable as a differential, humidity or ratio controller_x000D_ Quick and user-friendly configuration via set-up program_x000D_ RS422/485 interface_x000D_ Tried-and-tested, clearly laid-out operating and configuration diagram_x000D_ Up to 8 binary outputs_x000D_ Certifications_x000D_ EN 14597_x000D_ IP20 rated_x000D_ IP65 rated
