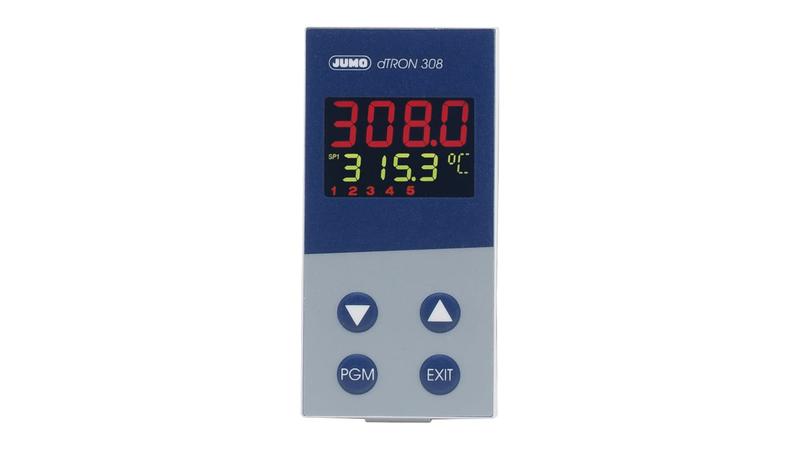

703042/181-000-23/000 Jumo dTRON PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 4 Output Logic, Relay, 110 → 240 V ac Supply Voltage

Jumo Temperature Controller_x000D_ The Jumo dTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 96mm(portrait format) device. It has a single analogue input, two logic inputs, two relays and two logic outputs. This is robust equipment that includes 4, freely programmable devices in different DIN formats for controlling temperature, pressure and other process variables. The instruments can be used as 2-state, 3-state, modulating or continuous controllers. The electrical connection at the back is established via screw terminals._x000D_ Inclusions:_x000D_ Controller, seal, fastening elements, operating instructions._x000D_ Features and Benefits_x000D_ 2 self-optimisation processes_x000D_ 2 timer functions_x000D_ 4 limit comparators_x000D_ 4 programmable set points, 2 parameter sets_x000D_ Bright LCD display for viewing different process parameters_x000D_ Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)_x000D_ Maximum 2, freely programmable analogue inputs_x000D_ Minimum sampling time is 50ms_x000D_ Profibus DP interface_x000D_ Program function with 8 sections or ramp function_x000D_ Programmable as a differential, humidity or ratio controller_x000D_ Quick and user-friendly configuration via set-up program_x000D_ RS422/485 interface_x000D_ Tried-and-tested, clearly laid-out operating and configuration diagram_x000D_ Up to 8 binary outputs_x000D_ Certifications_x000D_ EN 14597_x000D_ IP20 rated_x000D_ IP65 rated
