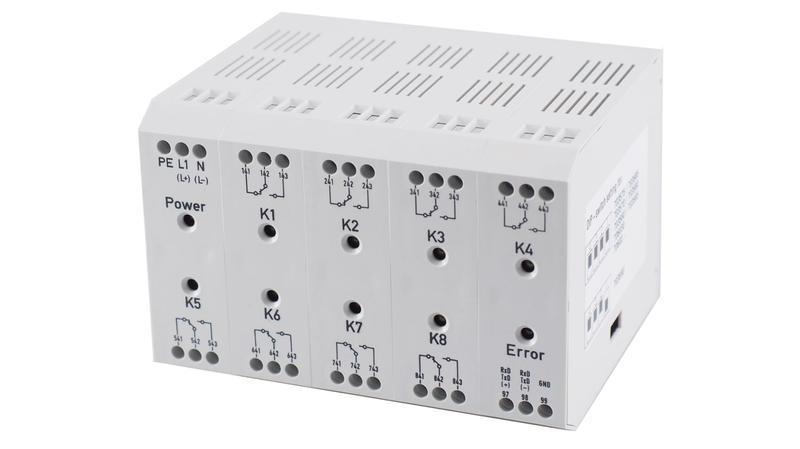

703564/1-23 Jumo Relay Output Unit

ER8/EL8 - External Output Module_x000D_ The external module ER8/EL8 expands controller and chart recorder by eight relay outputs (ER8) or logic outputs (EL8). The functions of the outputs are defined in the instrument that is connected, or via the setup program. Communication takes place through the serial interface._x000D_ External relay / logic modules for:_x000D_ - DICON 40x/50x_x000D_ - DICON touch_x000D_ - IMAGO500_x000D_ - Logoline 500d_x000D_ - Logoprint 500_x000D_ Module output type:_x000D_ - ER8 Relay Module 3 A/250 V, 110-240 V (stock-no.: 823-9896)_x000D_ - ER8 Relay Module 3 A/250 V, 20-53 V (stock-no.: 823-9899)_x000D_ - EL8 Logic Module 12 V/20 mA, 110-240 V (stock-no.: 823-9893)_x000D_ LED status indicators_x000D_ Configuration with DIP switched_x000D_ Serial interface_x000D_ Screw terminals_x000D_ DIN Rail mounting_x000D_ IP20 protection
