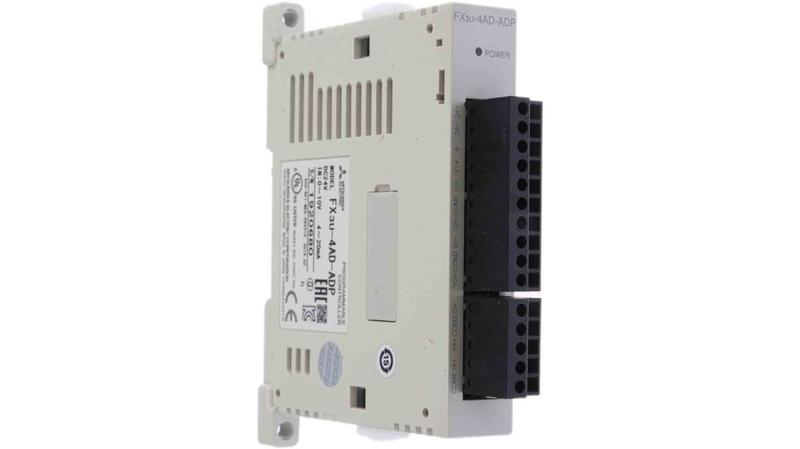

FX3U-4AD-ADP Mitsubishi PLC I/O Module for use with FX3U Series, 106 x 17.6 x 89.5 mm, Analogue, FX3U Series, 5 V dc, 24 V dc

Mitsubishi Analogue Input Module_x000D_ The Mitsubishi analogue input module a state-of-the-art device equipped with 4 output channels suitable for 0-10V and 4-20mA analogue inputs. These analogue adapters provide complete versatility, where each channel can be independently configured for either voltage or current control signals. These modules fit on the left-hand side of the PLC base units. The input modules are added depending upon the size of the base units._x000D_ Note_x000D_ :_x000D_ These modules fit on the left-hand side of FX3U base units and require one of the following modules to connect to the PLC: FX3U-232-BD (539-0869), FX3U-422-BD (539-0875), FX3U-485-BD (539-0881), FX3U-USB-BD (539-0897), FX3U-CNV-BD (539-0904). The supply voltage is taken from the PLC base unit._x000D_ Mitsubishi FX3U_x000D_ FX3U CPU's are compatible with existing FX2N expansion modules as well as the new FX3U ADP expansion modules and may be used as a replacement for FX2N PLC's._x000D_ Features and Benefits_x000D_ 11-12bit resolution_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ CE_x000D_ UL/cUL certified
