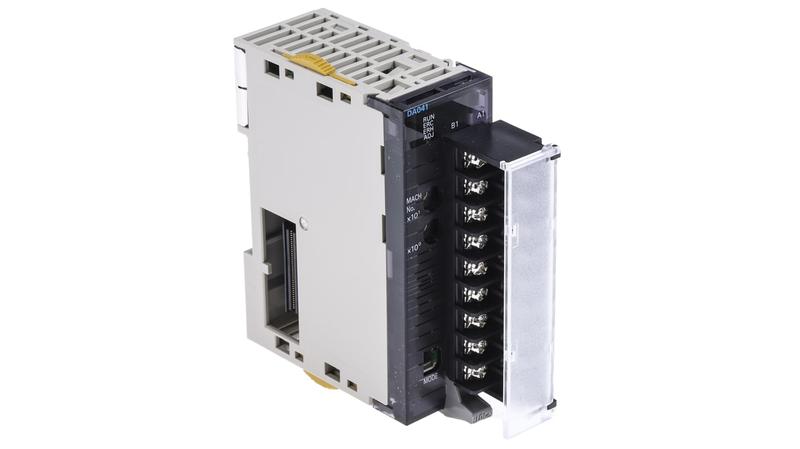

CJ1W-DA041 Omron PLC I/O Module for use with CJ Series, 90 x 31 x 65 mm, Analogue, CJ Series, 24 V dc

Omron PLC Extension Module_x000D_ The Omron programmable logic controller(PLC) extension I/O module is a 4 output interface for communicating with analogue signals. Analogue modules are clipped together to the right of the CPU along with other extension modules. It has a voltage rating of 24VDC with 12mA current. The input units perform the function of converting analogue input signals into binary data and analogue output units perform the function of converting binary data into analogue output signals. It has many advanced functions that include line disconnection detection, output holding, offset/gain adjustment, scaling, input averaging, input peak value holding and ratio conversion._x000D_ Features and Benefits_x000D_ High-speed D/A conversion in 20μs/point with direct conversion function_x000D_ It has 5 signal ranges: 1V to 5V, 0V to 5V, 0V to 10V, -10V to 10V, 4mA to 20mA_x000D_ DIN rail type mount_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobiles industry_x000D_ Certifications_x000D_ UC1 certified_x000D_ CE_x000D_ cULus certified_x000D_ Lloyd certified_x000D_ NK certified
