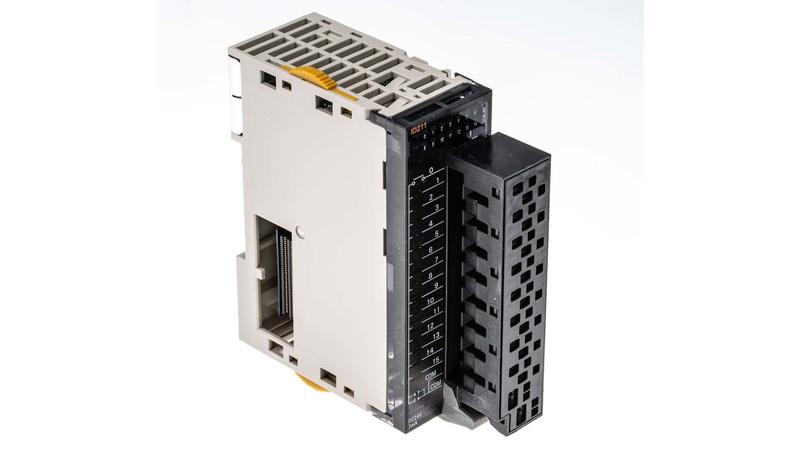

CJ1W-ID211-SL Omron PLC Expansion Module for use with SYSMAC CJ Series, 90 x 31 x 89 mm, Digital, 5 V dc

Omron PLC extension module_x000D_ The Omron PLC extension module has 16 digital inputs and 1 word allocated. It enables digital I/O, analogue I/O and communication modules to clip together to the right of the CPU in any combination to increase the system throughput. Modules can be connected to the system as a part of an expansion assembly to receive the ON/OFF signals from external devices into the PLC system to update I/O memory in the CPU unit. A wide range of CJ series input units is available featuring high-speed input and suitability for various applications. This module is used with SYSMAC CJ Series._x000D_ Features and Benefits_x000D_ High-speed inputs available_x000D_ ON response rime: 15μs_x000D_ OFF response time: 90μs_x000D_ This 24VDC model can be connected to devices with either NPN or PNP outputs_x000D_ No need to select the polarity_x000D_ A digital filter in the unit can be set from 0ms to 32ms to reduce the influence of external noise_x000D_ Either a Fujitsu or MIL connector interface can be used_x000D_ Removable screw terminal block conversion units are available, making it easy to connect to external devices_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobiles industry_x000D_ Certifications_x000D_ CE_x000D_ cULus approved_x000D_ Lloyd approved_x000D_ NK certified_x000D_ UC1 listed
