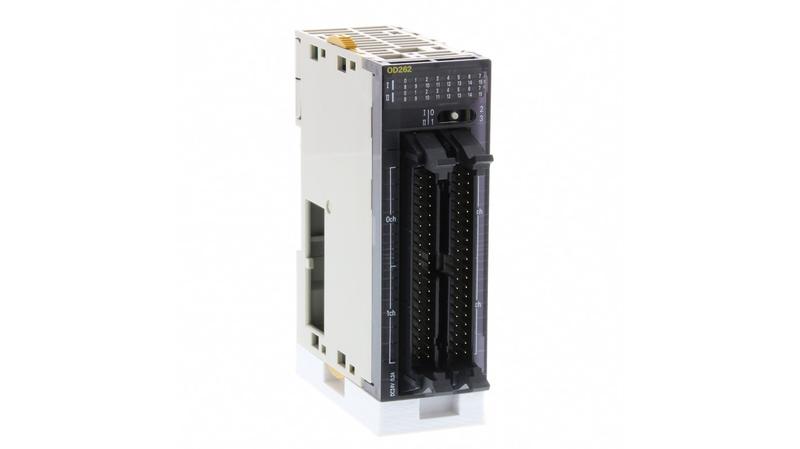

CJ1W-OD262 Omron I/O Unit for use with CJ2 Family PLC, CJ

Digital Output Modules_x000D_ The PNP transistor output module (Stock No. 512-5902) features short circuit protection and an output wire break sensing facility_x000D_ Commons: 1 (8 for stock no. 510-1489)_x000D_ Outputs: 16 (8 for stock no. 510-1489)_x000D_ Current Consumption: 90mA @ 5Vdc (48mA @ 24Vdc) for stock no. 510-1489; 110mA @ 5Vdc (96mA @ 24Vdc) for 512-5895; 100mA @ 5Vdc only, for stock nos. 510-1495 and 512-5902_x000D_ The Omron CJ series digital I/O units with 8 to 64 points input, output per unit or mixed. Digital I/O units serve as the PLC's interface to achieve fast, reliable sequence control. A full range of units, from high-speed DC inputs to relay outputs, let you adapt CJ1 to user needs. CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin 'flat cable'-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units._x000D_ 4 x transistor outputs_x000D_ Output Type PNP_x000D_ 2 x MIL40 connectors (not included)_x000D_ Omron CJ1M Digital and Analogue I/O Modules_x000D_ CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly._x000D_ Dimensions: Height 90mm, Width 31mm, Depth 89mm_x000D_ All modules have removable screw terminal blocks for I/O connections, except screwless (SL)
