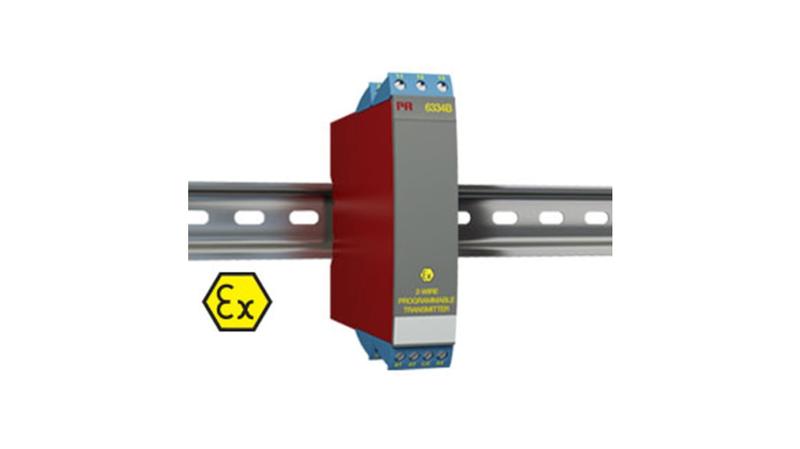

6334B2A PR Electronics 6300 Temperature Transmitter Thermocouple, Voltage Input, 7.2 → 30 V dc

6334B 2-Wire Programmable Transmitter_x000D_ PR Electronics 6334B intrinsically safe 2-wire programmable temperature transmitter offers unrivalled performance in applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 6334 transmitters provides unrivalled input versatility with galvanic isolation up to 1.5 kVAC for virtually any thermocouple and bipolar mV signals. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failure_x000D_ The 6300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes._x000D_ Features and Benefits_x000D_ • DIN Rail mounting_x000D_ • Galvanic isolation_x000D_ • Can be installed in Ex zone 0_x000D_ • Sensor drift detection maintains measuring point reliability_x000D_ • Flexible input capability, with choice of output modes_x000D_ • Superior accuracy ensures true, reliable measurements_x000D_ • Fast response time easily supports safety and cost-critical applications_x000D_ • High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz_x000D_ • Continuous check of vital stored data for safety reasons_x000D_ • Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter_x000D_ • Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions
