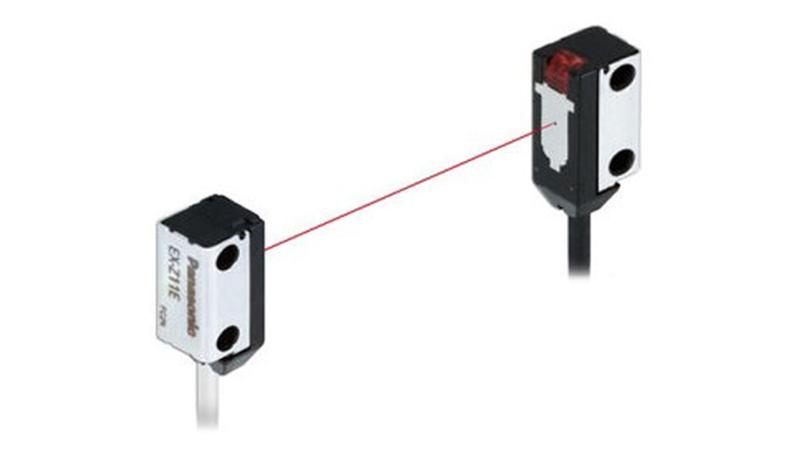

EX-Z11FA-P Panasonic Through Beam Photoelectric Sensor, Block Sensor, 50 mm Detection Range

EX-Z Series Ultra-minute Photoelectric Sensor_x000D_ Panasonic EX-Z series ultra-minute photoelectric sensors with built in amplifier. The compact size allows installation of sensors in a narrow space where only a conventional fiber sensor head could be installed before. The built-in amplifier also saves on installation space._x000D_ Sensing Capability_x000D_ A slit is provided on the front side of the main sensor body allowing the sensor to detect a 0.3 mm diameter object without using an optional slit. High-brightness 4-element red LED provides strong light emission over a long period of time. With the spotlight clearly visible, the sensing position can be easily confirmed._x000D_ Features and Benefits_x000D_ Front sensing or side sensing type_x000D_ IP67 rated_x000D_ 3 sensing range models: 50mm, 200mm or 500mm_x000D_ Note_x000D_ Supplied as an Emitter and Reciever pair. The model No. with “E” shown on the label affixed to the sensor is the emitter, “D” shown on the label is the receiver.
