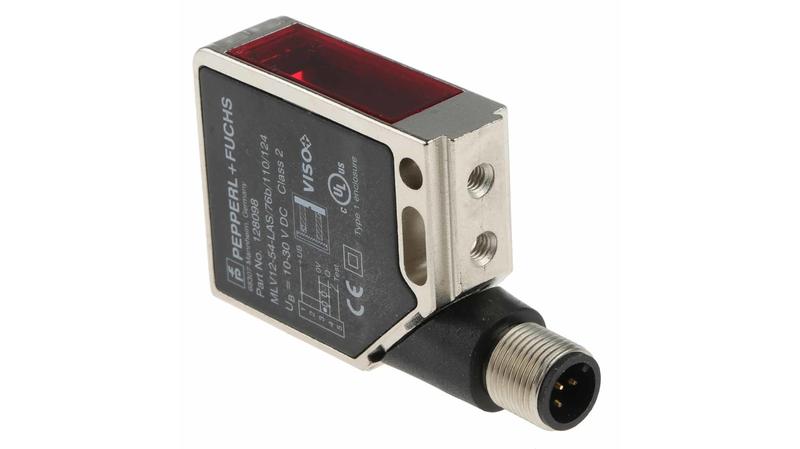

MLV12-54-LAS/76B/110/124 Pepperl + Fuchs Retroreflective Photoelectric Sensor, Block Sensor, 15 m Detection Range

Retro-Reflective - Laser_x000D_ Automatic adjustment of the switch points ’sensitivity’ through “TEACH IN”_x000D_ Sensitivity adjustment via membrane keypad or optical interface (e.g. freely selectable time steps)_x000D_ Multifunction input_x000D_ Control test input_x000D_ Multifunction Timer_x000D_ Failure warning, indication and output (static, dynamic)_x000D_ Voltage supply: 10 → 30Vdc_x000D_ M12, 5 pin connector_x000D_ Visible red light, pulsed laser light - 650nm_x000D_ Flashing power on LED in case of short circuit_x000D_ Multiple device installation possible, no mutual interference_x000D_ Ultra bright LEDs for power on, stability control and switching state_x000D_ Powerful push-pull output - 200mA for high resistance against noise_x000D_ Protection class II_x000D_ Not sensitive to ambient light, even with switched energy saving lamps_x000D_ Temperature range: -10 → +50°C_x000D_ Note_x000D_ Reflector not supplied. See reflector 285-065_x000D_ Caution_x000D_ Laser radiation is harmful to the human eye and under no circumstances should the laser beam be viewed directly or via optical instruments._x000D_
