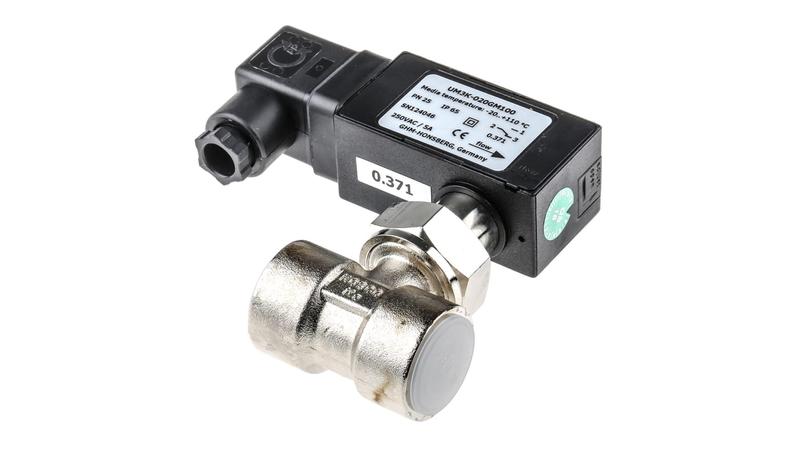

613-4222 RS PRO Paddle Flow Switch for Gas, Liquid, 7.5 L/min Min, 10 L/min Max

RS PRO Flow Switch, Max. 10 L/min_x000D_ This flow switch lets you monitor the flow of a liquid or gas. It has a 3/4 in British Standard Pipe (BSP) female connection and is useful for indicating flow problems in equipment._x000D_ The flow switch features a paddle with a magnet that approaches a second magnet at a preset flow rate between 7.5 and 10 litres per minute. This second magnet activates a microswitch that adjusts the flow when the rate is outside the preset range._x000D_ Part of the RS PRO series, this product is tested for quality and safety. It features a stainless steel paddle and a nickel-plated brass body for corrosion resistance. An IP65 rating means it's protected from water splashes and dust, and it can withstand a maximum pressure of 25 bar and a maximum operating temperature of +110°C._x000D_ You'll find this flow switch useful for detecting problems in ventilation, cooling and heating systems._x000D_ Features and Benefits_x000D_ • Paddle flow switch for monitoring liquid and gas flow_x000D_ • Functional parts made of stainless steel_x000D_ • Body made from nickel-plated brass_x000D_ • 3/4 in BSP female connection_x000D_ • Minimum flow rate of 7.5 L/min_x000D_ • Maximum flow rate of 10 L/min_x000D_ • Maximum pressure of 25 bar_x000D_ • Maximum operating temperature of +110°C_x000D_ • Supply voltage of 250 V AC_x000D_ • Current rating of 5 A_x000D_ • Height of 88 mm_x000D_ • Length of 50 mm_x000D_ • Width of 12 mm_x000D_ • Weight of 0.35 kg_x000D_ • Hermetic separation of electrical and hydraulic components_x000D_ • DIN 43650-A plug_x000D_ • IP65 rating (resistant to dust and water spray)_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
