| Type | 3RF3403-1BD04 |
| No. of pins | 3-pin |
| Switching type | Instant response |
| Contact type | 2 makers |
| Control voltage (min.) | 15 |
| Control voltage (max.) | 24 |
| Control voltage range | 15 - 24 V DC |
| Switching voltage (min.) | 48 |
| Switching voltage (max.) | 480 |
| Current load | 3.8 |
| Mounting type | DIN rail |
| Connection | Screw terminals |
| IP rating | IP20 |
| Min. temperature | -25 |
| Max. temperature | +60 |
| Width | 45 |
| Height | 95 |
| Depth | 113.8 |

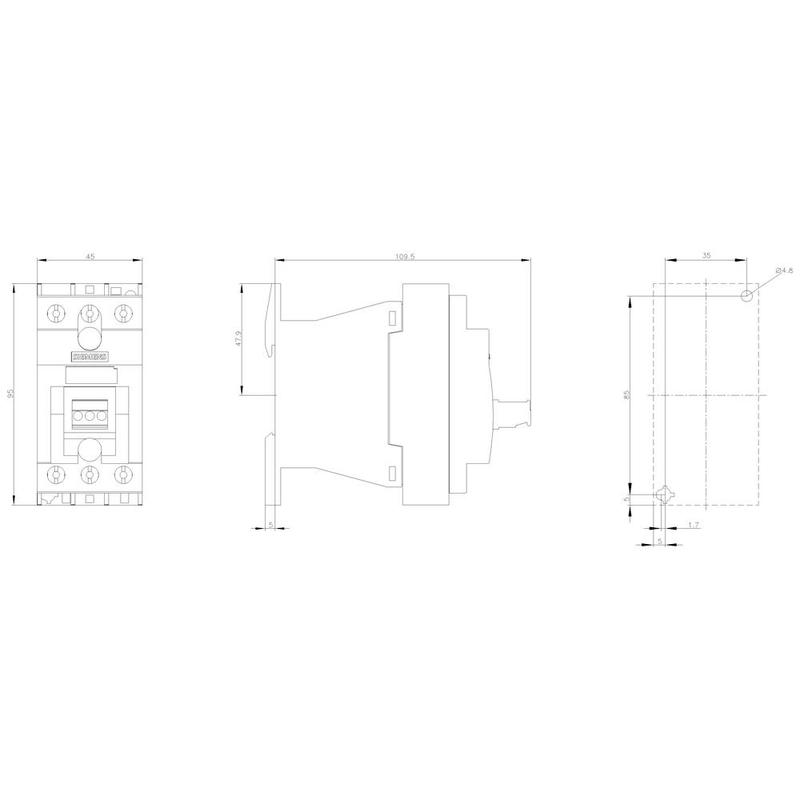

| Dim | (W x H x D) 45 x 95 x 113.8 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Number of phases | 3 |
| Rated operation current Ie at AC-3 | 3.8 |
| Rated operation current Ie at AC-53a | 3.8 |
| Product type | SSC |
