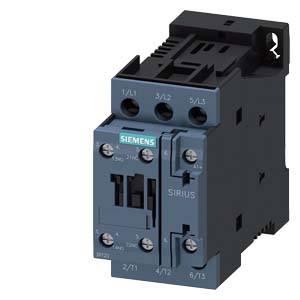

| Type | 3RT2026-1BJ80 |
| Type | S0 |
| No. of pins | 3-pin |
| Contact type | 3 makers |
| Nominal voltage | 690 |
| Mounting type | Snap-in |
| Durability | 1000 0000 |
| IP rating | IP20 |
| Min. temperature | -25 |
| Max. temperature | +60 |
| Width | 45 |
| Height | 85 |
| Depth | 107 |
| Dim | (W x H x D) 45 x 85 x 107 mm |
| Content | 1 |
| Rated operation power at AC-3, 400 V | 11.0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-3, 400 V | 25 |
| Rated operation current Ie at AC-1, 400 V | 40 |
| Rated control supply voltage Us at DC | 72-72 |
| Rated operation current Ie at AC-4, 400 V | 15.5 |
| Rated operation power at AC-4, 400 V | 7.5 |
| Product type | Electrical contactor |
