| Type | 3RT2027-1AP00 |
| Type | S0 |
| No. of pins | 3-pin |
| Contact type | 3 makers |
| Auxiliary contact type | 1 maker |
| Nominal voltage | 230 |
| Switching voltage (max.) | 400 |
| Current load | 32 |
| Power | 15 |
| Features | + auxiliary contact |
| Mounting type | DIN rail |
| Connection | Screw terminals |
| Durability | 1.0E7 |
| IP rating | IP20 |
| Min. temperature | -25 |
| Max. temperature | +60 |

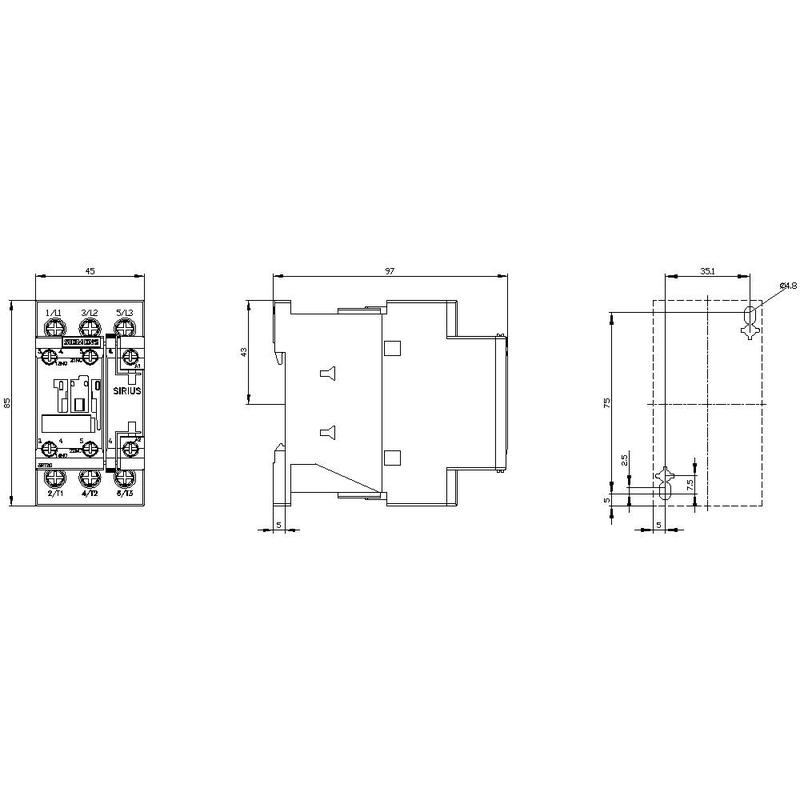

| Width | 45 |
| Height | 85 |
| Depth | 97 |
| Dim | (W x H x D) 45 x 85 x 97 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Weight | 0.42 |
| Rated operation power at AC-3, 400 V | 15 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-3, 400 V | 32 |
| Rated operation current Ie at AC-1, 400 V | 50 |
| Rated operation current Ie at AC-4, 400 V | 22 |
| Product type | Contactor |
