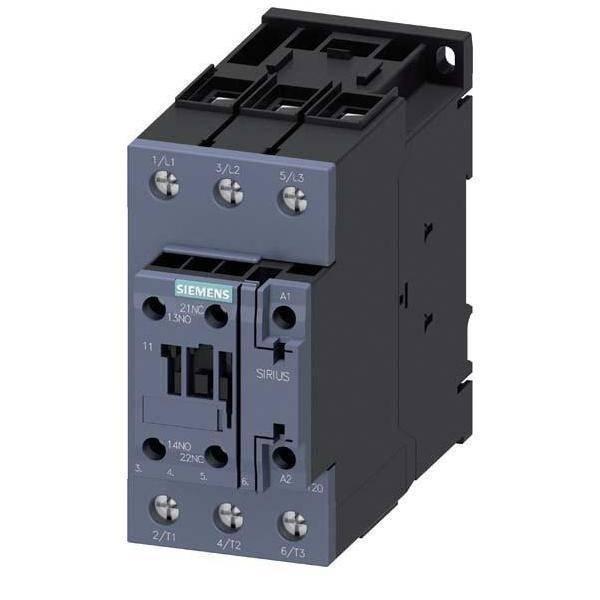

| Type | 3RT2035-1NB30 |
| Type | S2 |
| No. of pins | 3-pin |
| Contact type | 3 makers |
| Auxiliary contact type | 1 maker |
| Nominal voltage | 24 |
| Control voltage (min.) | 20 |
| Control voltage (max.) | 33 |
| Control voltage range | 20, 20 - 33, 33 V DC, V AC |
| Switching voltage (max.) | 400 |
| Current load | 40 |
| Power | 18.5 |
| Features | + auxiliary contact |
| Mounting type | DIN rail |
| Connection | Screw terminals |
| Durability | 1.0E7 |
| IP rating | IP20 |
| Min. temperature | -25 |
| Max. temperature | +60 |
| Width | 55 |
| Height | 114 |
| Depth | 130 |
| Dim | (W x H x D) 55 x 114 x 130 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Rated operation power at AC-3, 400 V | 18.5 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-3, 400 V | 41 |
| Rated operation current Ie at AC-1, 400 V | 60 |
| Rated operation current Ie at AC-4, 400 V | 35 |
| Product type | Contactor |
