| Type | 3RV2121-4BA10 |
| Type | S0 |
| Amperage adjustment range (min.) | 13 |
| Amperage adjustment range (max.) | 20 |
| Adjustment range (amperage) | 13 - 20 A |
| No. of pins | 3-pin |
| Switching voltage (max.) | 690 |
| Mounting type | Snap-in |
| Min. temperature | -20 |
| Max. temperature | +60 |
| Connection | Screws |
| IP rating | IP20 |
| Depth | 97 |
| Width | 65 |
| Height | 97 |

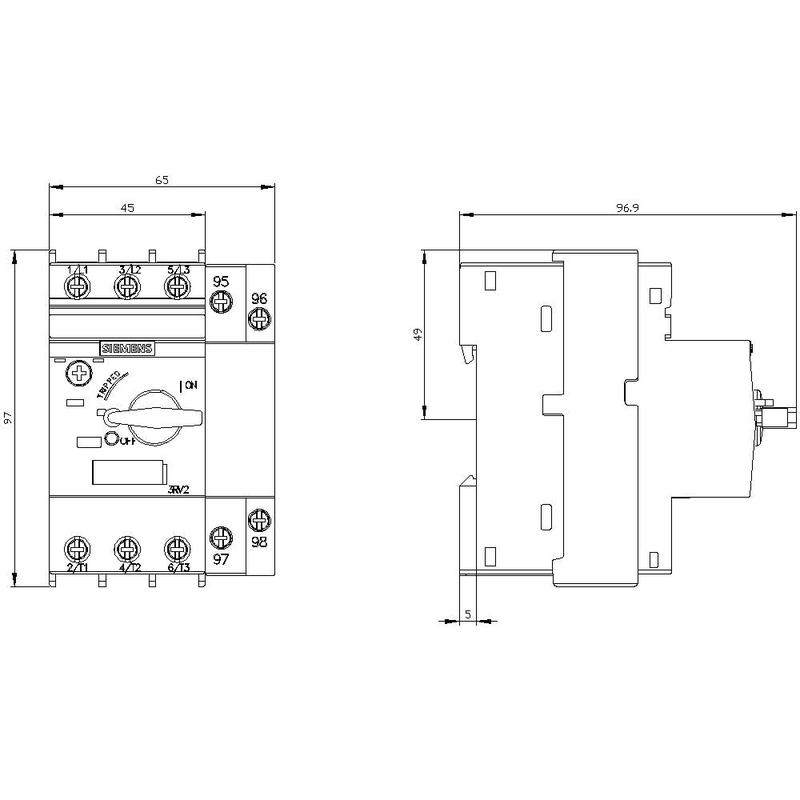

| Dim | (W x H x D) 65 x 97 x 97 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Width | 65 |
| Height | 97 |
| Depth | 97 |
| Rated operation power at AC-3, 400 V | 7.5 |
| Rated permanent current Iu | 20 |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 5.5 |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 55 |
| Product type | Circuit breaker |
