| Connection | Plug |
| Operation type | Tappet |
| Switching current (max.) | 4 |
| Contact type | 1 breaker |
| Contact material | Silver alloy |
| Weight | 348 |
| Actuating force | 20 |
| Min. temperature | -25 |
| Max. temperature | +85 |
| IP rating | IP67 |
| Thread size | M12 |
| Durability | 15000000 |
| Electrical lifespan | 100000 |
| Material | Metal |
| Width | 40 |

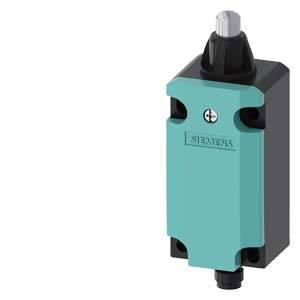

| Type | 3SE5114-0CC02-1AC4 |
| Content | 1 |
| Dim | (L x W) 117 mm x 40 mm |
| Depth | 37.3 |
| Length | 117 |
| Rated operation current Ie at AC-15, 230 V | 1.5 |
| Rated operation current Ie at DC-13, 230 V | 0.27 |
| Number of safety auxiliary contacts | 1 |
| Rated operation current Ie at AC-15, 125 V | 4 |
| Rated operation current Ie at AC-15, 24 V | 4 |
| Rated operation current Ie at DC-13, 125 V | 0.55 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Width sensor | 40.0 |
| Height of sensor | 37.3 |
| Length of sensor | 117.0 |
| Ambient temperature during operating | -25-85 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Product type | Door-operated switch |
