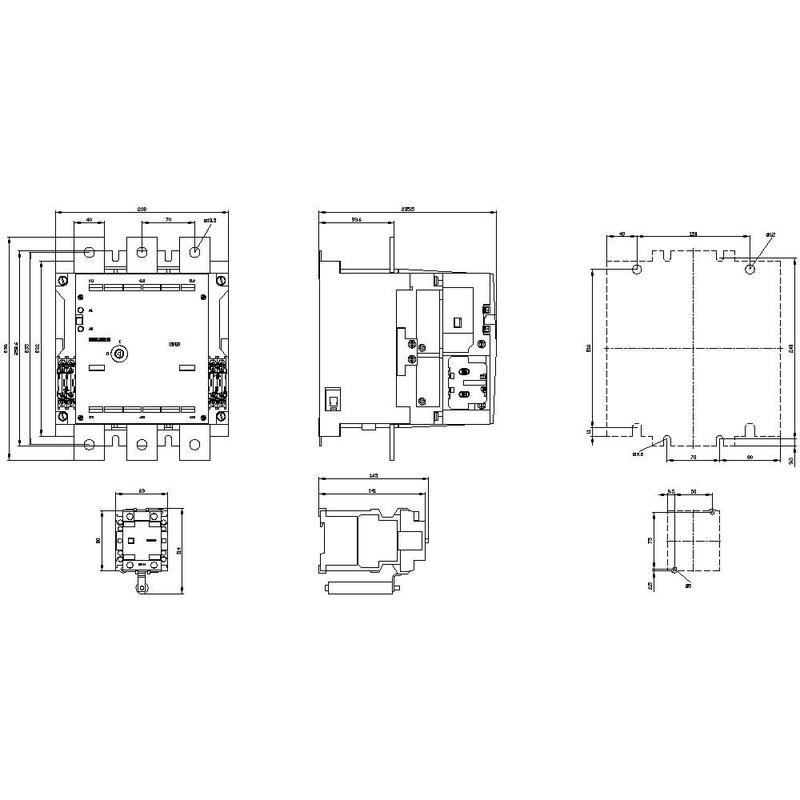

| Type | 3TF6933-1DM4 |
| No. of pins | 3-pin |
| Contact type | 3 makers |
| Mounting type | Screw-fit |
| Connection | Screws |
| IP rating | IP00 |
| Min. temperature | -25 |
| Max. temperature | +55 |
| Width | 230 |
| Height | 295 |
| Depth | 237 |
| Dim | (W x H x D) 230 x 295 x 237 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Rated operation power at AC-3, 400 V | 450 |
| Number of normally open contacts as main contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally closed contact | 3 |
| Rated operation current Ie at AC-3, 400 V | 820 |
| Rated operation current Ie at AC-1, 400 V | 910 |
| Rated operation current Ie at AC-4, 400 V | 690 |
| Rated operation power at AC-4, 400 V | 191.0 |
| Product type | Contactor |
