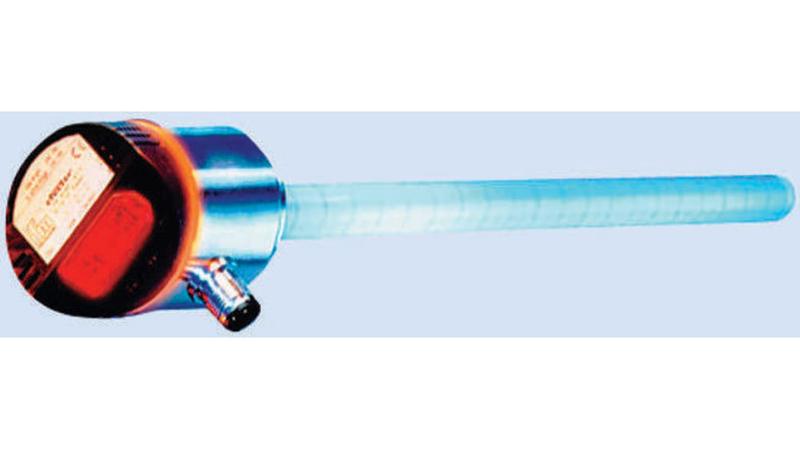

LK1023 ifm electronic Electronic Level Sensor, PNP Output, Stainless Steel Body

IFM Electronic Level Sensor_x000D_ The ifm electronic level sensor has a supply voltage ranging between 18VDC and 30VDC it operates to a capacitive measuring principle. The sensor with protection rating IP67 is optimised for use in hydrous coolants and oils on machine tools and hydraulic power packs. The current level is visible on the 4-digit alphanumeric display. 2-point level control can, for example, be implemented via a digital switching output. The second output can be used for running-dry protection or overflow control._x000D_ Features and Benefits_x000D_ Housing connection (flat-pin connector 6.3 mm following DIN 46244)_x000D_ Probe length: L = 472mm_x000D_ Has 2 switching outputs_x000D_ Materials (wetted parts): PP_x000D_ Housing materials stainless steel (304S15)_x000D_ FKM_x000D_ NBR_x000D_ PBT_x000D_ PC_x000D_ PEI_x000D_ PP_x000D_ TPE/V_x000D_ Applications_x000D_ Hydrous coolants_x000D_ Oil_x000D_ Water_x000D_ Media similar to water_x000D_ Certifications_x000D_ DIN EN 60068-2-29_x000D_ DIN EN 60068-2-6_x000D_ EN 61000-4-2 ESD_x000D_ EN 61000-4-3 HF_x000D_ EN 61000-4-4_x000D_ EN 61000-4-6 HF_x000D_ DIN EN 60068-2-29_x000D_ DIN EN 60068-2-6_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
