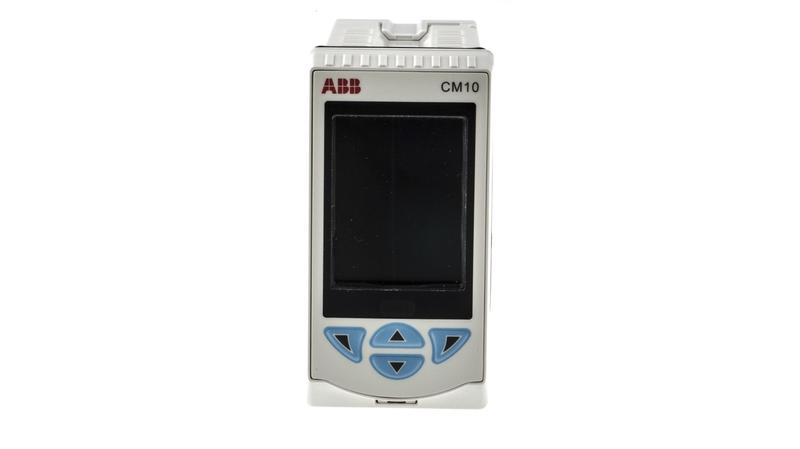

CM10/000S0E0/STD ABB CM10 Process Controller, 97 x 50mm, 2 Output Analogue, Relay, 100 → 240 V ac Supply Voltage ON/OFF

ControlMaster PID Controller CM10_x000D_ The ControlMaster CM10 is a flexible PID process controller in a 1/8 DIN unit. Detailed process information is presented clearly on the CM10's full-colour TFT display and an intuitive operator interface simplifies configuration and operation. Scalable in both hardware and software functionality, a CM10 can be easily specified to meet the needs of your application requirements. Flexible control functionality including on/off, time proportioning, analogue PID, split output and autotune make the CM10 suitable for a wide range of process applications._x000D_ Fully configurable via the easy-to-navigate front panel menus or PC configuration software, the CM10 can be commissioned rapidly and then tuned via the advanced autotune functionality._x000D_ Features and Benefits_x000D_ • Full-colour 5.5cm (2.2”) TFT display_x000D_ • User-customisable, intuitive interface with clear text prompts for easy installation, commissioning and operation_x000D_ • Scalable to match application requirements_x000D_ • Comprehensive hardware and software options_x000D_ • Flexible control functionality_x000D_ • On/Off, time proportioning, analogue PID and split output_x000D_ • IP66 and NEMA 4X environmental protection_x000D_ Functionality:_x000D_ The autotune capability in the CM10 provides automatic calculation of the PID values after initial setup and configuration is completed for rapid commissioning in whatever application._x000D_ 8 Independent process alarms provide analogue signal monitoring to enable extensive process monitoring functionality. These alarms can be used to drive physical outputs and also have the ability to drive soft-wired functions within the controller itself._x000D_ Split output control configuration of the CM10 allows for controlling both heating and cooling of a single process if required._x000D_ I/O build:_x000D_ • 2 Analogue inputs_x000D_ • 1 Analogue O/P_x000D_ • 1 Relay_x000D_ Base Templates:_x000D_ • Single loop with local setpoint_x000D_ • Single loop with remote setpoint
