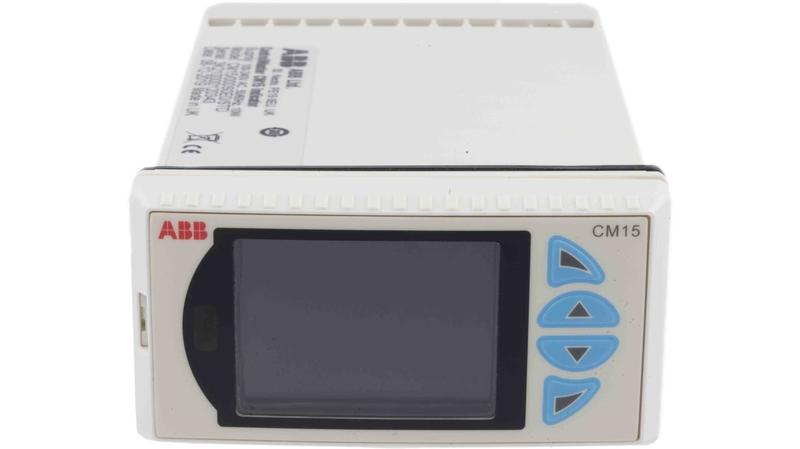

CM15/000S0E0/STD ABB CM15 Process Indicator, 50 x 97mm, 2 Output Analogue, Relay, 100 → 240 V ac Supply Voltage ON/OFF

ControlMaster PID Controller CM15_x000D_ The ControlMaster CM15 is a feature-packed universal process indicator in an industry standard 1/8 DIN profile for quick and easy installation. The full-colour, TFT display shows operators a range of information tailored exactly to the user’s needs and provides operation and configuration menus in full text. The full text display makes the CM15 intuitive to use as well as quick to install and commission._x000D_ The CM15 offers a range of functionality such as totalisation for calculations of flor total values and pulse counting capability._x000D_ Comprehensive hardware and software additions mean the CM15 is scalable to match almost any application requirements._x000D_ 8 Independent process alarms for monitoring analogue signal, alarms can drive physical outputs or soft-wired to other functions. 2 totalisers can be integrated against analogue signal to totalise flow, count digital pulses and totalise flow based on frequency signal from electromagnet flow meter._x000D_ Features and Benefits_x000D_ • Full-colour 5.5cm (2.2") user-customisable TFT display_x000D_ • Intuitive user interface with clear text prompts to make installation, commissioning and operation quick and simple_x000D_ • Direct, high accuracy connection to electromagnetic flowmeters_x000D_ • 2 universal inputs, 1 analogue output and 1 relay output, as standard_x000D_ • Calculation and display of flow total values_x000D_ • Pulse counting capability_x000D_ • IP66 and NEMA 4X environmental protection_x000D_ Functionality:_x000D_ • 8 Process alarms_x000D_ • Totalisation_x000D_ • Volume computation_x000D_ • SG compensation_x000D_ • Minimum, maximum and average calculation_x000D_ I/O Build:_x000D_ • 2 Analogue inputs_x000D_ • 1 Analogue O/P_x000D_ • 1 Relay_x000D_ Base Templates:_x000D_ • Single PV indication_x000D_ • Single PV with totalizer_x000D_ • Single totalizer_x000D_ • Single level with volume
