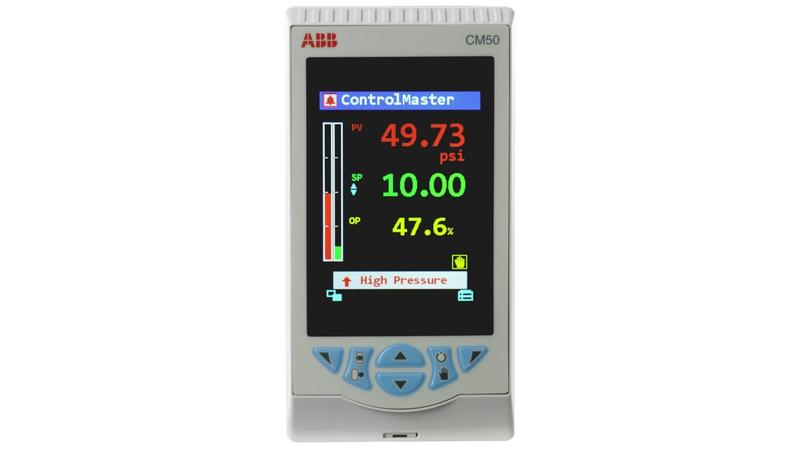

CM50/0S0S0E0/STD ABB CM50 Controller, 144 x 76mm, 5 Output Analogue, Digital, Relay, 100 → 240 V ac Supply Voltage ON/OFF

ControlMaster PID Controller CM50_x000D_ The ControlMaster CM50 is a flexible, universal 1/8 DIN PID process controller. Detailed process information is presented clearly on the CM50's full-colour TFT display and an intuitive operator interface simplifies configuration and operation. Scalable in both hardware and software functionality, a CM50 can be easily specified to meet the needs of your application requirements. Flexible control functionality including on/off, time proportioning, analogue PID, dual output control and math & logic make the CM50 suitable for a wide range of process applications._x000D_ Fully configurable via the easy-to-navigate front panel menus or PC configuration software, the CM50 can be commissioned rapidly and then tuned via the advanced autotune functionality._x000D_ Features and Benefits_x000D_ • Full-colour 9cm (3.5”) user-customisable TFT display_x000D_ • Intuitive user interface_x000D_ • Clear text prompts for quick and easy installation and commissioning_x000D_ • Scalable to match application requirements_x000D_ • Comprehensive hardware and software options_x000D_ • Flexible control functionality_x000D_ • On/Off, time proportioning, analogue PID and motorised valve control strategies_x000D_ • Flexible functionality including math, logic and totalisation providing power to solve complex application requirements_x000D_ • IP66 and NEMA 4X environmental protection_x000D_ The CM50 features 8 Independent process alarms provide analogue signal monitoring to enable the extensive process monitoring functionality. Alarms can be used to drive physical outputs or have the ability to drive soft-wired functions within the controller itself._x000D_ Gain scheduling in the CM50 is used to control non-linear processes. The CM50 selects up to 3 different sets of PID parameters ensuring optimum control response regardless of process status._x000D_ The autotune capability in the CM50 provides automatic calculation of the PID values after the initial setup and configuration is complete for rapid commissioning of the unit in whatever application._x000D_ Split output control configuration of the CM50 allows for controlling both heating and cooling of a single process if required._x000D_ Math and logic functions in the CM50 provide arithmetic and equation capabilities such as averaging, mix. and max. hold, square root and signal switching. These functions can be performed in a single math block for simple equations or can be processed across multiple math blocks to construct complex equations. Similar to the Math functionality, the 8 comprehensive logic blocks offer powerful interlock functionality. Logic equations inputs and outputs can be soft-wired to any digital signal in the controller to maximise flexibility._x000D_ Other Functionality_x000D_ • Process alarms_x000D_ • Basic setpoint switching_x000D_ • Analogue PID_x000D_ • On/Off or time proportioning_x000D_ • Auto tune_x000D_ • Split output control (Heat Cool)_x000D_ • Gain scheduling_x000D_ • Motorised valve control_x000D_ • Standard setpoint switching_x000D_ • Output tracking_x000D_ • Logic_x000D_ • Math_x000D_ • Custom linearises_x000D_ • Delay timers_x000D_ • Real-time alarms_x000D_ • Template customisation_x000D_ I/O Build:_x000D_ • 2 Analogue inputs_x000D_ • 1 Analogue output_x000D_ • 2 Digital I/O_x000D_ • 2 Relays_x000D_ Base Templates:_x000D_ • Single loop_x000D_ • Single loop with remote setpoint_x000D_ Standard Templates:_x000D_ • Auto/Manual station low or digital signal selection_x000D_ • Analogue backup station low or digital signal selection_x000D_ • Single or Dual indicator/manual loader
