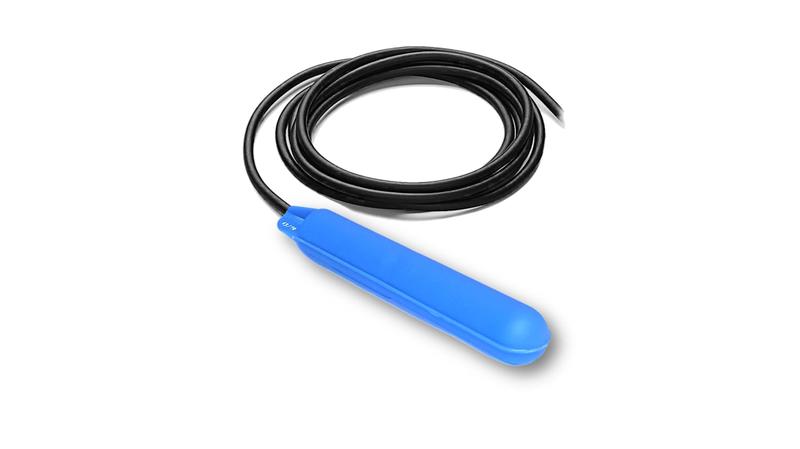

TUBA1NE10M ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 10m Cable, SPDT, 250V ac Max, 125V dc Max

This float level switch is a small diameter tubular float that has been designed to fit tanks and cisterns having restriced access._x000D_ Its small 1" diameter allows it to pass through the narrow openings usually found on the side walls of tanks. As the liquid level reaches the float, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel._x000D_ Thanks to its +/-20° switching angle, the TUBA float level switch ensures a very precise level measurement.._x000D_ The installation is possible up to a water depth of 55 meters._x000D_ The TUBA 1'' float level switch can be installed in 3 ways :_x000D_ fixed to a cane, vertically suspended on the cable with external ballasts, or horizontally mounted on the tank sides with a gland._x000D_ Maximum pressure 5.5 bar_x000D_ Maximum temperature 85°C_x000D_ Protection index IP68
