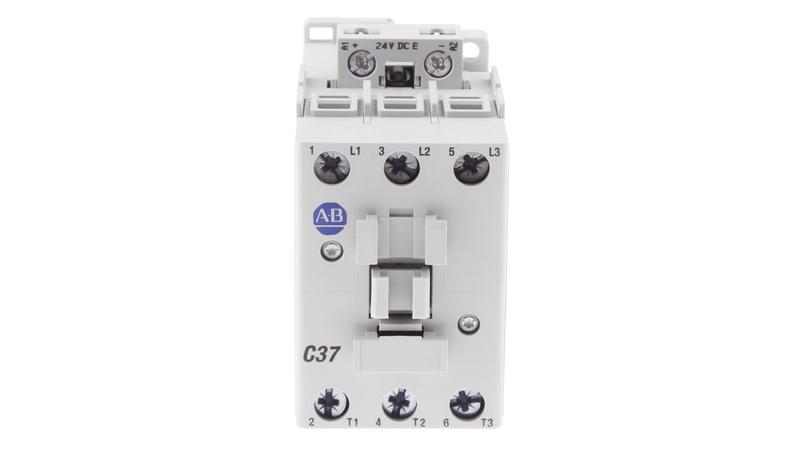

100-C37EJ00 Allen Bradley 100 Series 100C Contactor, 24 V dc Coil, 3 Pole, 37 A, 18.5 kW, 3NO

Allen Bradley 100-C 24V DC Coil Operating Contactors_x000D_ The compact yet powerful 100-C series of contactors by Allen Bradley provides exceptional performance with enhanced reliability and efficiency._x000D_ These versatile IEC contactors can easily handle the high starting currents of modern motors and other loads with their high switching power. They are also designed to save panel space with their smaller frame. They offer high connection reliability and ease-of wiring due to having two separate power connections per pole, and have low power consumption, to save you valuable time and money. They are also RoHs compliant and are comprised of environmentally friendly materials, ensuring that you can make a better choice for your personnel and the planet._x000D_ These 100-C series contactors with DC coils include integrated surge suppression. 100-C contactors have reversible coil terminals and provide front and side mounting of auxiliary contacts. They can be attached to a 35mm DIN Rail mount or panel mounted. Breadth of line is 9...97 A. They have IP2X finger protection to prevent risk of injury to operators and risk of damage to the device. They are compatible with electronic overload relays and bimetallic relays. A complete range of accessories is available for all contactor sizes, helping you to create a flexible and flawlessly integrated starter component system._x000D_ Features:_x000D_ • Max. switching voltage 690V (rated voltage) AC3_x000D_ • 24Vdc coil draws 200W inrush, upto 16W Hold in_x000D_ • Electrical Life: 1.3 million operations_x000D_ • 3 pole, 1 NO auxiliary contact on sizes 4 to 11kW_x000D_ • Built-in surge suppression with DC coils_x000D_ Note_x000D_ Please ensure the power supply and any contacts used in the circuit can withstand 8.3A surge current_x000D_ Standards: IEC947, EN60 947, VDE0660, UL508, CSA22.2._x000D_ 100-C37EJ00 Contactor_x000D_ The 100-C37EJ00 unit is a 3-Pole contactor with a power rating of 18.5kW. It has a 24V dc electronic coil and a rated operating current of 37A. This model also has screw type terminals. Coil termination is line side._x000D_ How do contactors work?_x000D_ Contactors are electromagnetic devices which can switch high amounts of electrical current and work with the use of an internal coil or electromagnet, which opens or closes the contacts when electrical current passes through it. They are similar to relays, however they can handle larger loads and are able to switch more than 15 amperes. This makes them ideal for heavy-duty, larger scale applications, such as switching several different circuits simultaneously. These devices can be remotely controlled and so can be used for logic controlling, such as turning different things on and off together. Contactors feature high coil voltages and they also have more input and output options than relays. They are often used to control electric motors and lighting systems._x000D_ Allen Bradley Contactors are expertly designed to consistently deliver excellent performance and meet your unique requirements. They have a range of motor control products, including IEC and NEMA contactors that can be combined with compatible accessories, to help you find your ideal solution._x000D_ Allen Bradley MCS (Modular Control System) Contactors:_x000D_ MCS is a modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3._x000D_ MCS features:_x000D_ • A wide range of accessories available to cater for many diverse needs_x000D_ • The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held_x000D_ • The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings_x000D_ • A modular design concept and an easy to fit 'clip-in' method_x000D_ • Simple and fast DIN Rail and Surface Mounting
