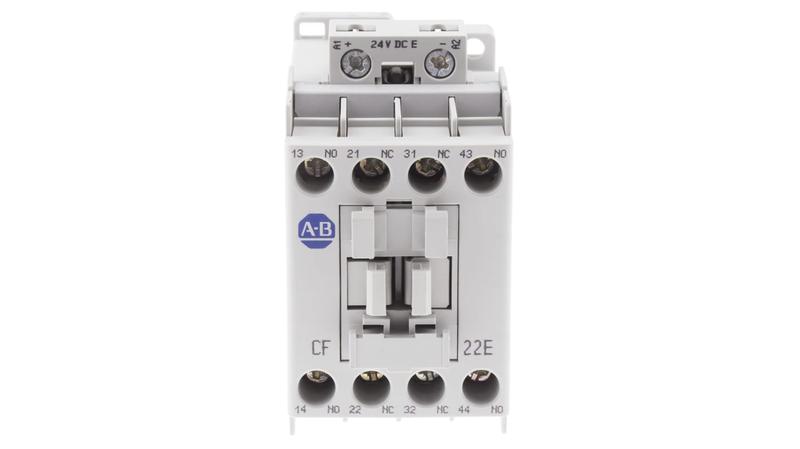

700-CF220EJ Allen Bradley 700 Series 700C Contactor, 24 V dc Coil, 4 Pole, 25 A, 2NO + 2NC

Allen Bradley 700-CF IEC Coil Operating Voltage Control Relay, 24 V dc_x000D_ Ensure improved safety, efficiency, and reliability for your circuit with the Bulletin 700-CF IEC Control Relays by Allen Bradley. These control relays offer features required for demanding industrial safety system applications such as mechanically linked contacts, timing options, and long contact life in an IEC design._x000D_ These units have a contact rating of 25 A (AC1) and a maximum rated voltage of 690V. Dimensions are: H 80.5mm, W 45mm, D 81mm. They have high contact reliability and incorporate environmentally friendly materials. They can be DIN rail or surface mounted. They can also use the same accessories as the Bulletin 100-C series._x000D_ Features and Benefits:_x000D_ • Ideally suited for demanding heavy-duty industrial applications_x000D_ • Mechanically linked contact performance per IEC 60947-5-1_x000D_ • Gold plated, bifurcated version for low level switching applications_x000D_ • 4 to 10 poles_x000D_ • High contact reliability_x000D_ • Electronic and pneumatic timing modules_x000D_ • Environmentally friendly materials_x000D_ • Space saving coil modules_x000D_ Certifications:_x000D_ CE, cULus, CCC_x000D_ 700-CF220EJ Control Relay_x000D_ The 700-CF220EJ model is a 4-Pole DC coil voltage contactor which has 2NO + 2NC contact configuration. It has a 24V dc electronic coil and screw terminals. The contacts are standard type. The contact current rating is 25A._x000D_ What is a contactor?_x000D_ Much like relays, a contactor is an electromagnetic device which is designed to switch electrical current through its contacts. It can switch a larger amount of electrical power than normal relays and can therefore be used for more heavy-duty, larger-scale applications, such as switching several different circuits simultaneously. It can also be controlled remotely and can be used for logic controlling to serve different functions, such as turning on some things at the same time as turning off others. Contactors feature high coil voltages and are able to switch more than 15 amperes, and they also have more input and output options than relays. They are frequently used to manage electric motors and lighting systems. They contain a coil or electromagnet which opens or closes the contacts when the electrical current passes through the contactor._x000D_ Allen Bradley offer a variety of motor control products including IEC and NEMA contactors, as well as many compatible accessories, to suit your requirements and deliver maximum performance.
