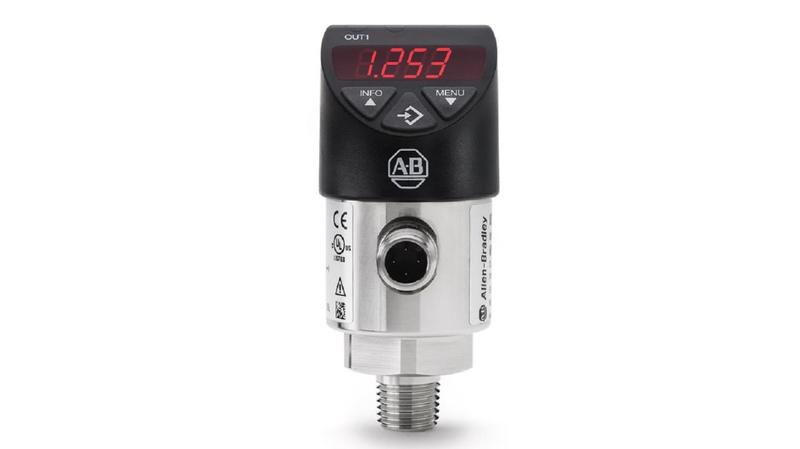

836P-D2NMAA30PA-D4 Allen Bradley 836P Series Pressure Sensor, 4 → 20 mA, Analogue, PNP-NO/NC Output, Relative Reading

Allen Bradley 836P Solid-State IO-Link Pressure Sensor_x000D_ Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner._x000D_ With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections._x000D_ Features and Benefits_x000D_ Corrosion resistant 316L stainless steel sensing element_x000D_ Compact form factor_x000D_ LED display_x000D_ IP67 rated_x000D_ Rotatable housing and head_x000D_ Available in various process connections_x000D_ IO-Link communication protocol_x000D_ Allen Bradley Pressure Sensor, Solid State, 35V DC Maximum Supply Voltage - 836P-D2NMAA30PA-D4_x000D_ Use this Allen Bradley solid-state pressure sensor from Rockwell Automation to maintain fluid pressure in your system. It uses a PNP transistor to perform switching functions reliably. The easy-to-use unit has an LED display for quick status reading and three navigation buttons, so you can easily set switching points, reset points and switching delays. Its head and body can be rotated to suit the needs of your system. Thanks to its stainless steel housing, this device is corrosion resistant and can be used safely in humid environments._x000D_ • IP67 rating means this device is dust-proof and can handle immersion in water of 1m for 30 minutes_x000D_ • Operating temperature range between -20°C and +80°C for use in harsh conditions_x000D_ • Pressure range between 0 and 20 bar for use in heavy-duty applications_x000D_ • 1/4 NPT threading for a secure and vibration-proof connection_x000D_ Standards and Certifications_x000D_ • CE conformity - Pressure equipment directive 97/23/EC_x000D_ • cULus_x000D_ • EN 61340-5-1:2007_x000D_ • ANSI/ESD S20.20:2014_x000D_ What does this sensor's analogue signal output load of 4 to 20mA mean?_x000D_ This rating is used to interpret the potential pressure level in your vessel at between 0% and 100%.
