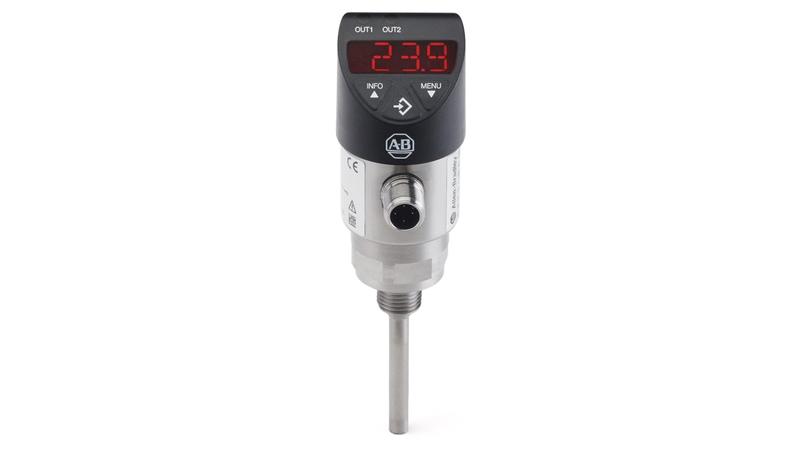

837T-D3G14B10PA-D4 Allen Bradley PT1000 RTD Sensor, 6mm Dia, 100mm Long, G1/4, Class A +80°C Max

Allen Bradley 837T Series Solid State Temperature Sensors_x000D_ Allen-Bradley 837T solid-state temperature sensors offer a high-accuracy comprehensive solution for measuring temperatures in liquids, gases and vapours. The 837T display model has temperature measurement ranges from -20°C to 80°C and features IO-Link communications protocol. IO-Link allows sensors to easily integrate with the connected enterprise, delivering data from the sensor directly into a control system in an easy-to-use manner. Easy on-machine programming allows the sensors to be configured manually through the Studio 5000 Logix Designer software._x000D_ The flexible 837T sensor with display offers various process connections and features a compact, rotatable housing (320°) and head (330°) to accommodate the most complicated applications. The sensors have 2 x PNP or 1 PNP and 4 mA to 20 mA analogue output configurations, probe lengths from 25 mm to 350 mm and an IP67 enclosure rating._x000D_ Features and Benefits_x000D_ Temperature Range: -20…80 °C_x000D_ IO-Link communication_x000D_ Available in various process connections_x000D_ Rotatable housing (320°) and head (330°)_x000D_ Large visual display rotates 180°_x000D_ Output: 2 x PNP or 1 x PNP and 1 x Analogue (4 mA to 20 mA)_x000D_ IP67 enclosure rating_x000D_ Allen Bradley RTD Sensor, 6mm Probe Diameter, 100mm Probe Length - 837T-D3G14B10PA-D4_x000D_ Use this accurate resistance temperature detector (RTD) sensor from Rockwell Automation's Allen Bradley range to monitor thermal differences in your industrial environments. The device features a 100mm probe that converts changes in electrical resistance to temperature values. It shows these values on a large digital display that rotates 180° for easy viewing. The sensor comes in a stainless steel housing that's durable and can withstand mechanical impact, making it a good choice for use in harsh environments. It's commonly used in automotive plants as well as water treatment systems._x000D_ • Mechanical service life of 100,000,000 switching cycles for long-term performance_x000D_ • High operating pressure limit of 150bar for use in heavy-duty applications_x000D_ • Low current consumption of 450mA for energy efficiency_x000D_ • IP67 (ingress protection) rating indicates protection from dust and immersion in up to 1m of water for 30 minutes_x000D_ Standards and Certifications_x000D_ • CE (Conformitè Europëenne)_x000D_ • RoHS (Restriction of Hazardous Substances)_x000D_ • ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards_x000D_ • IEC 61131-3 international standard for programmable controller programming languages_x000D_ What's the measuring temperature range of this sensor?_x000D_ This RTD sensor can measure between -20°C and +80°C, so you can use it in low and high temperatures.
