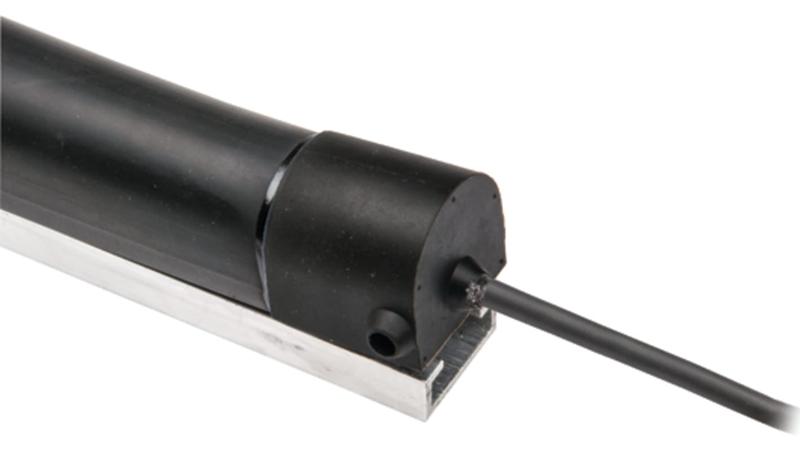

440F-E000028RS Allen Bradley Guardmaster 0110N Safety Edge Sensor, Protected Area 2m, SET Wire Lead

Safedge Profiles_x000D_ The Safedge pressure sensitive system is supplied in two popular profiles, with cushion factor over travel distances of 5mm and 19mm. The cushion factor is the distance the profile can be depressed after a signal has been generated._x000D_ It is mounted on an aluminium C rail (included) and is supplied in 1, 1.5 and 2m lengths that may be cut and joined in series or parallel to support a wide range of industrial applications such as power operated doors, guided vehicles and moving machinery beds._x000D_ The Safedge profile uses a combination of non-conductive rubber and flexible wire cored conductive rubber bonded together enabling it to return to its original shape even after repeated compressions._x000D_ It has no rigid internal parts to damage the rubber profile or cause fatigue failures after prolonged use. The multi-stranded copper wire core throughout the length of the strip also insures that there are no problems of resistance build up on long lengths._x000D_ A range of accessories for end termination and 90° active corner joints are also available._x000D_ 2 different profile designs_x000D_ Conductive rubber technology_x000D_ Available in 1m, 1.5m or 2m lengths_x000D_ Aluminium mounting rail_x000D_ The system has a bend radius of 200mm_x000D_ Rubber boot optional_x000D_ Active corners_x000D_ IP65 protection_x000D_ Note_x000D_ These Safedge profiles are supplied part assembled. The series terminating resistor and associated end closing cap are not attached to the profile but are supplied separately in a bag. This allows the profile to be cut to the appropriate length before completing the assembly by inserting the resistor and gluing the end cap in place using industrial cyanoacrylate adhesive._x000D_ Allen Bradley Guardmaster 0110N Safety Edge Sensor, Protected Area 2m, SET Wire Lead - 440F-E000028RS_x000D_ This safety edge sensor from Rockwell Automation's Allen Bradley Guardmaster range is a pressure-sensitive device. Use it on the leading edge of a variety of equipment to improve safety. It functions by sending a stop signal to the machine upon contact with an external object in its path. The unit is made up of a flexible wire-cored conductive rubber encased in a second non-conductive rubber material that enables it to accommodate repeated compressions without losing form. Since it has no rigid internal parts, its rubber profile is protected from damage and lasts longer._x000D_ Features and Benefits_x000D_ • Multi-stranded copper-wire core protects the unit against damage from resistance buildup_x000D_ • NBR/CR (nitrile butadiene/chloroprene) rubber material for durability_x000D_ • Aluminium mounting rail is corrosion-resistant, contributing to the component's longevity_x000D_ Standards and Certifications_x000D_ • ANSI/ESD S20.20:2014 (Electrostatic Control Standards)_x000D_ • BS EN 61340-5-1:2007 (Electrostatic Control Standards)_x000D_ • EN 13849 PLd, Cat. 3, EN ISO 13856-2: 2013 (International Organization for Standardization)_x000D_ How does this sensor detect an obstruction?_x000D_ • IP65 protection_x000D_ This sensor is pressure sensitive. When an object comes into contact with it, the pressure applied triggers a stop signal from its wire-cored rubber to the machine's control unit._x000D_ Safety Edge
