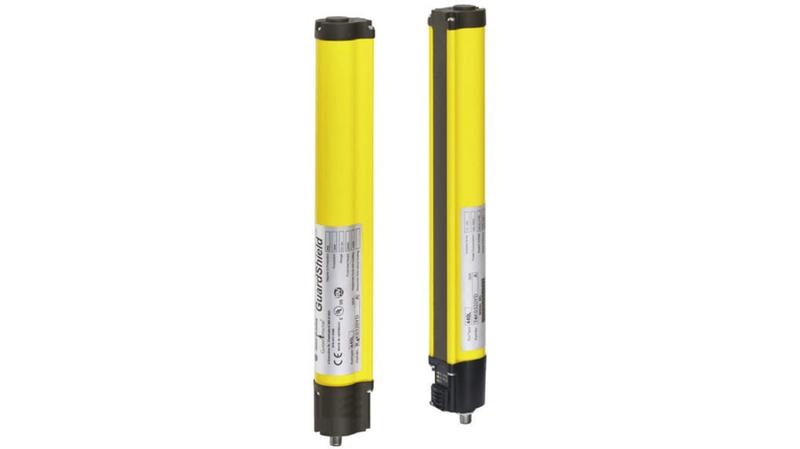

440L-P4J0640YD Allen Bradley Guardmaster 440 L Series GuardShield Light Curtain, Sender & Receiver, 64 Beam(s), 14mm Resolution

Allen Bradley Guardmaster GuardShield 440L Type 4 Finger Protection Safety Light Curtains_x000D_ Ensure sophisticated presence sensing for your machine safety application with the GuardShield 440L Finger Protection Safety Light Curtains and accessories by Allen Bradley Guardmaster._x000D_ The GuardShield family of safety light curtains are general-purpose devices for presence sensing. They can be used on hazardous machinery to ensure perimeter and access detection and point of operation detection, helping to prevent injury to personnel. Point of Operation Control light curtains (POC) are used specifically for finger, hand and arm recognition and should be placed close to the hazard where personnel interact with the machine. This type of safety system uses a transmitter which emits sequential pulses of infrared light to a receiver. When the beams are interrupted a stop signal is immediately sent to the machine._x000D_ These GuardShield Light Curtains are self-contained two-box Type 4 Electro Sensitive Protective equipment (ESPE). They have convenient DIP switch selectable Modes of Operation, located beneath a security door in the end caps, which offer advanced features such as:_x000D_ • Fixed blanking (teachable)_x000D_ • Floating blanking (one or two beam)_x000D_ • Beam coding_x000D_ • Start/restart interlock_x000D_ • External device monitoring (EDM)_x000D_ Features and Benefits:_x000D_ • 14mm resolution (finger detection)_x000D_ • Two safety solid state and one auxillary non-safety outputs_x000D_ • Easy maintenance with the Quick Disconnect cables (4-pin for the sender, 8-pin for the receiver)_x000D_ Applications:_x000D_ • Robot cells_x000D_ • Conveyors_x000D_ • Presses_x000D_ • Forming Operations_x000D_ • Electronic Fences_x000D_ • Workstations_x000D_ Note: Installation and operation of this safety device must be in strict accordance with accompanying operating instructions._x000D_ When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the "Minotaur" range of products (e.g 447-5587)_x000D_ Standards: IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4, UL61496, UL1998_x000D_ Approvals: TUV and CE marked; UL61496, UL1998_x000D_ Light Curtain
