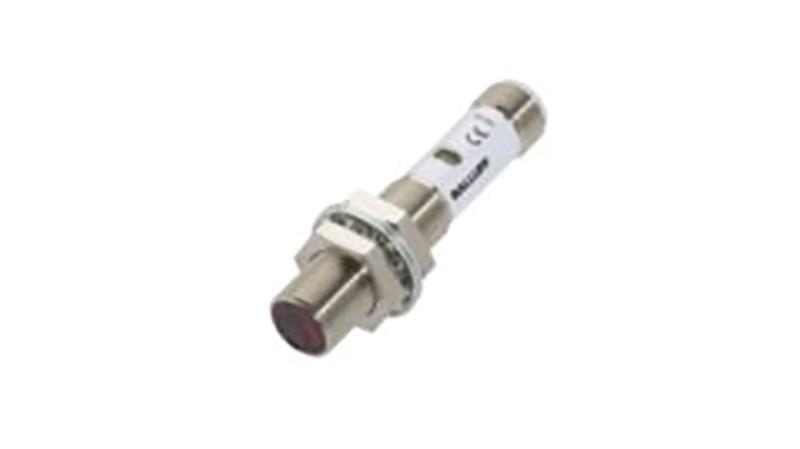

BOS 12M-PS-RD10-S4 BALLUFF Light Intensity Sensors 1 → 250 mm, Red LED, PNP, 100 mA, 10 → 30 V dc, IP67

BOS 12M Series Tubular Optical Sensors_x000D_ The 12M series of Tubular optical sensors are used for the most common applications. All of these sensors diffuse, retroreflective or thru-beam are designed in the same housing as a typical inductive proximity sensor (M12x1). This means that optical and inductive proximity sensors are mechanically and electrically compatible. For installation all the 12M compact series require is a drilled hole._x000D_ The available models are:_x000D_ The Diffuse with fixed sensing distances of 100 mm and 200 mm manufactured to tight tolerances. The use of a red light also makes alignment easier. The Diffuse model with 400 mm range is adjustable making the sensor more flexible and universal._x000D_ Retroreflective sensors with polarising filter and an adjustable range up to 1.5 metres and red light._x000D_ Thru-beam sensors with 5 metre range, red light and adjustable sensitivity. Output is complimentary, allowing function monitoring of the sensor system. Additional output status display in the sensor face make it easier to align._x000D_ Supply voltage 10 to 30 V dc_x000D_ Polarity reverse protected_x000D_ Output 200 mA_x000D_ Short protected_x000D_ Output status display_x000D_ IP67 housing_x000D_ Standard metal housing (m12x1)_x000D_ Red light and infrared versions_x000D_ Fixed and adjustable sensitivity_x000D_ PNP or NPN, light on or dark on_x000D_ Cable and connector (M12 connector)
