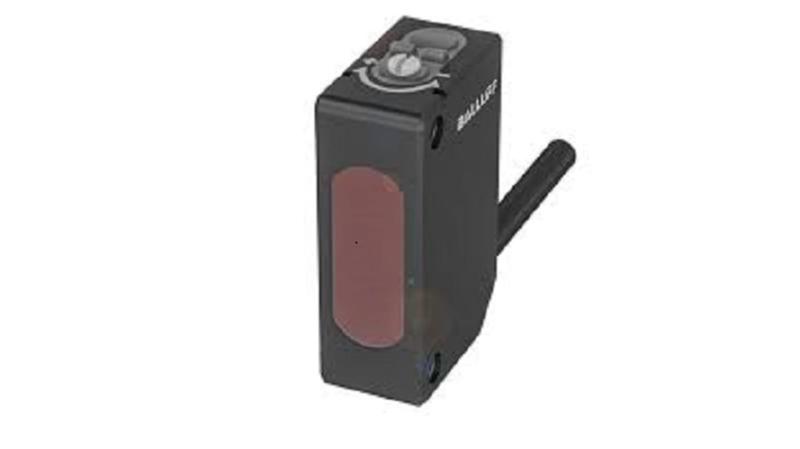

BOS029K BALLUFF Diffuse Photoelectric Sensor, Square Sensor, 350 mm Detection Range

The balluff diffuse sensors with background suppression detect objects within a set switching distance, without being affected by reflective backgrounds. Object and background can be differentiated very definitively, especially as these diffuse sensors are characterized by their low grey value shift and hysteresis. Since the transmitter and receiver are housed together in a single unit to save space, you can easily mount our diffuse sensors and align them quickly. With teach-in or via potentiometer sensor versions can be adjusted and versions with fixed switching distance are also available._x000D_ R090K series diffuse sensor_x000D_ Dimension is 10.7 x 43.5 x 19.5 mm_x000D_ Interface is PNP normally open/normally closed (NO/NC)_x000D_ Principle of operation photoelectric sensor_x000D_ Principle of optical operation diffuse sensor, triangulation based_x000D_ Beam characteristic focus, typical at 90 mm_x000D_ Red colour LED light type_x000D_ Light spot size 4.5 mm at 60 mm_x000D_ Operating range is 20 to 350 mm_x000D_ Connector is M8x1 type with 3-pin_x000D_ Material sensing surface PMMA_x000D_ Operating voltage is between 10 to 30 VDC
