0660-0500 BARTH lococube mini-PLC PLC I/O Module - 5 Inputs, 5 Outputs, Mosfet, Solid State, For Use With STG-560, Computer

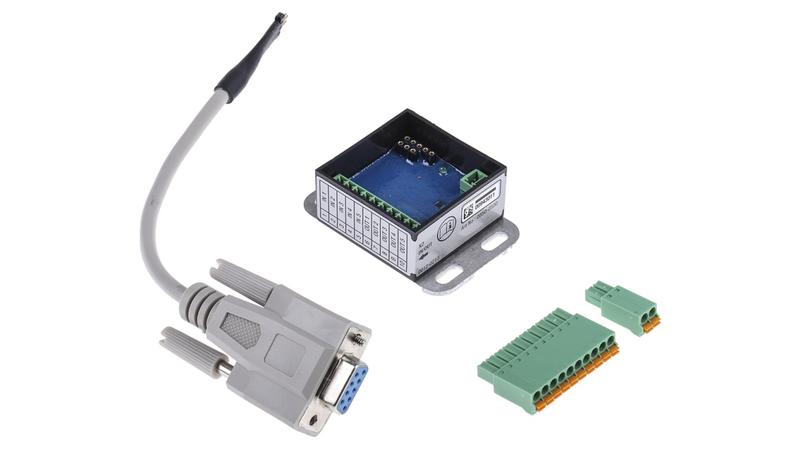

STA-500 - Mini-PLC Starter Kit_x000D_ The STA-500 is a mini-PLC starter kit from Barth, providing fast access to the unique graphical programming capability of the STG-500 PLC. The kit contains STG-500 mini-PLC and developing software suite miCon-L. The mini-PLC can be easily programmed, without learning any difficult programming language simply by using vivid function blocks. The block is designed to meet graphical standards of the latest programming languages. The miCon-L developing software suite is a cutting-edge tool that features programming, simulation and test in one unique software design tool. It is free to download from the following link: http://micon-l.de/en/downloads.html_x000D_ Features & Benefits_x000D_ Mini-PLC STG-500 miCon-L_x000D_ miCon-L software suite download_x000D_ Connectors for Mini-PLC_x000D_ RS-232 interface cable_x000D_ User manual Mini-PLC STG-500_x000D_ User manual miCon-L software suite_x000D_ Innovative graphical programming with miCon-L_x000D_ PLC simulation and debugging_x000D_ Mini-PLC STG-500 with 2 digital inputs_x000D_ 3 analogue inputs 0 V dc to 30 V dc_x000D_ 4 Solid-state outputs 1.5 A_x000D_ 1 MOSFET output 2 A_x000D_ PWM capability up to 5 kHz_x000D_ True RS-232 interface_x000D_ Programmable status-LED_x000D_ Internal voltage monitor_x000D_ Internal temperature monitor_x000D_ Wide operating voltage range 7 V dc to 32 V dc_x000D_ ESD- and EMV-stable design_x000D_ Spring terminal connection_x000D_ Vibration resistant and waterproof sealing_x000D_ Product Application Information_x000D_ The STA-500 Starter Kit contains:_x000D_ Mini-PLC STG-500_x000D_ Pluggable Spring Terminal Connectors_x000D_ Quick Start Manual_x000D_ With its cutting edge features the STA-500 opens up new application fields with space restrictions and high integration level requirements. The outstanding features also open up applications in automotive, industrial, building, environmental, light and show, and maritime technologies._x000D_ Software:_x000D_ The software is available as a free online download:_x000D_ http://micon-l.de/en/downloads.html_x000D_ Note_x000D_ A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives._x000D_ Barth Mini-PLC
