0850-0100 BARTH lococube mini-PLC PLC I/O Module - 8 Inputs, 12 Outputs, Analogue, For Use With STG-100

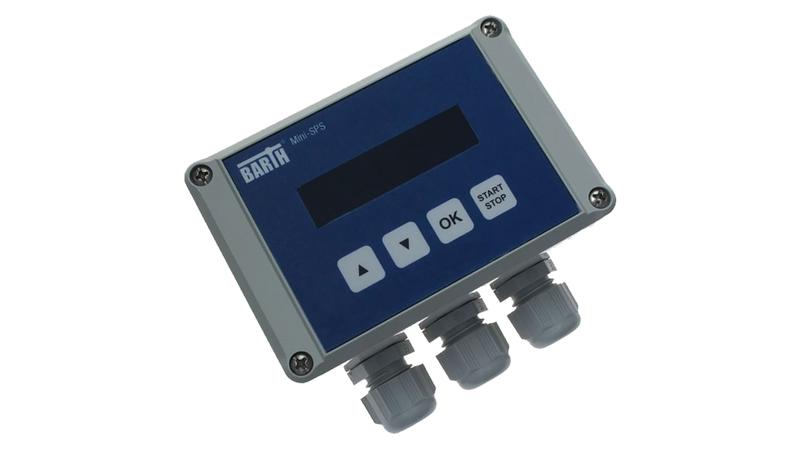

STG-100 - Mini-PLC_x000D_ STG-100 is an outdoor Mini-PLC which comes in a robust splash-proof housing, and with a double-spaced TFT-Display with blue LED-backlight. The open hardware concept opens up completely new application fields._x000D_ Mini-PLC with LC-Display_x000D_ Build in a splash-proof housing_x000D_ Wide supply voltage range 7-32 Vdc_x000D_ Ideal for 12/24 V power supply systems_x000D_ 8 analog/digital inputs 0-30 Vdc_x000D_ Analog/digital converter with 10 bit resolution_x000D_ 8 Short circuit- and overload protected outputs (1.5 A each)_x000D_ Hardware Real Time Clock (RTC)_x000D_ 3 PWM outputs up to 32 kHz_x000D_ 2 frequency counter inputs up to 65 kHz_x000D_ I²C connection_x000D_ SPI connection_x000D_ Internal voltage monitoring_x000D_ LCD 2x16 characters with blue backlight_x000D_ Freely programmable LCD_x000D_ 4 Enter Keys for easy menu navigation_x000D_ Programming in BASIC, C or Assembler_x000D_ EEPROM memory data retention >40 years_x000D_ Fully ESD and EMV tested design_x000D_ Easy connection provided by spring terminals_x000D_ IP65 protection_x000D_ Supplied with spring terminal connectors and user manual_x000D_ Note_x000D_ A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives._x000D_ Barth Mini-PLC
