0850-0115 BARTH lococube mini-PLC PLC I/O Module - 8 Inputs, 9 Outputs, Analogue, For Use With STG-115, Computer Interface

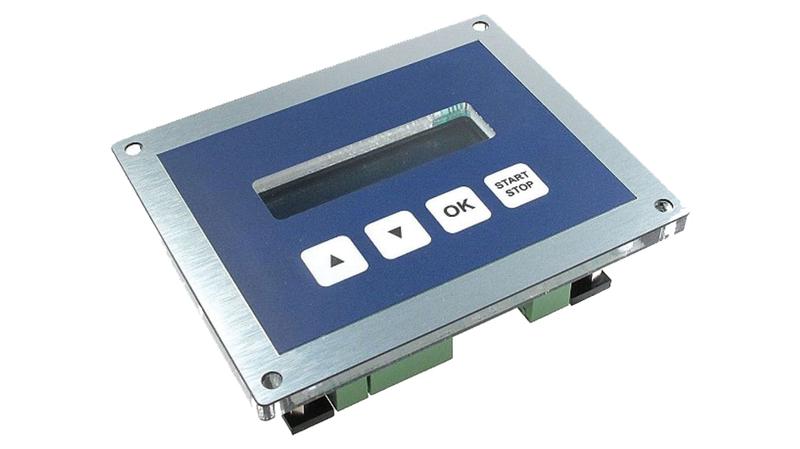

STG-115 - Mini-PLC Panel Mount Version_x000D_ The STG-115 is the panel mount model of the established Mini-PLC series which comes with a two row backlight dot matrix LCD._x000D_ It’s compact size in combination with the easy-to-use graphical programming capability opens up completely new application fields._x000D_ The device which is connectivity and flexibility is the ideal standard product for a wide range of applications._x000D_ Panel Mount Mini-PLC with Display_x000D_ Ideal for 24 V power supply_x000D_ 8 Analog/Digital Inputs 0 to 30 Vdc_x000D_ 2 Analog Inputs 0 to 10 Vdc_x000D_ 2 Current Loop Inputs 4 to 20 mA_x000D_ Analog/Digital converter with 10 bit resolution_x000D_ 8 overload protected outputs (1.5 A each)_x000D_ 1 relay output 1 A / 30 Vdc_x000D_ LCD 2´16 characters with blue backlight_x000D_ Backlight controlled by software_x000D_ Freely programmable LCD_x000D_ 4 enter keys for easy menu navigation_x000D_ Intuitive graphical programming with miCon-L - software_x000D_ Free graphical development software suite_x000D_ EEPROM memory data retention >40 years_x000D_ Fully ESD and EMV tested design_x000D_ Easy connection provided by spring terminals_x000D_ USB interface on board_x000D_ Wide operating temperature range -10 to +55 °C_x000D_ OEM versions available_x000D_ Shallow mounting depth of only 36 mm_x000D_ Measurements (LxHxD): 110 ´ 90 ´ 36 mm_x000D_ Applications:_x000D_ Industrial Automation_x000D_ Building Automation_x000D_ Metering and Dispensing Technology_x000D_ Environmental Technology_x000D_ Light and Show Technology_x000D_ Software:_x000D_ The software is available as a free online download:_x000D_ http://micon-l.de/en/downloads.html_x000D_ Note_x000D_ A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives._x000D_ Barth Mini-PLC
