0850-0500 BARTH lococube mini-PLC PLC I/O Module - 5 Inputs, 5 Outputs, PWM, Solid State, For Use With STG-115, Computer Interface

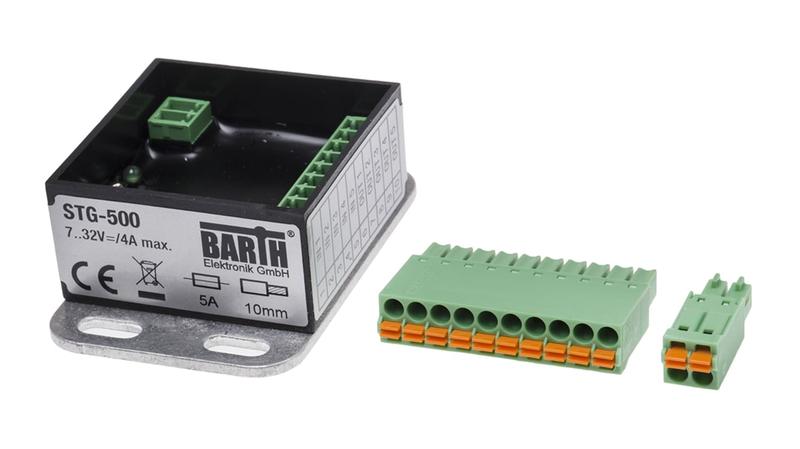

BARTH Logic Module_x000D_ The BARTH STG-500 CAN panel mount logic module is a highly integrated programmable logic controller. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. This logic module has low power consumption and can operate over a wide range of voltages, which makes it suitable for 12V and 24V battery-powered systems. It has three analogues inputs, which can vary from 0VDC to 30VDC and 2 digital inputs up to 10Khz. This logic module has four power outputs up to 1.5A and 1PWM power output. This logic module can be easily programmed using miCon-L software that does not require a difficult programming language._x000D_ Features and Benefits_x000D_ Reliable solid-state outputs_x000D_ Programmable status LED_x000D_ RS232 connection to the PC_x000D_ Integrated temperature sensor_x000D_ Wide operating voltage that ranges between 7VDC and 32VDC_x000D_ Low current consumption_x000D_ Vibration resistant and rugged sealing_x000D_ Universal aluminium mounting plate_x000D_ Applications_x000D_ Industrial automation_x000D_ Building automation_x000D_ Automotive technology_x000D_ Maritime technology_x000D_ Environmental technology_x000D_ Light and show technology
