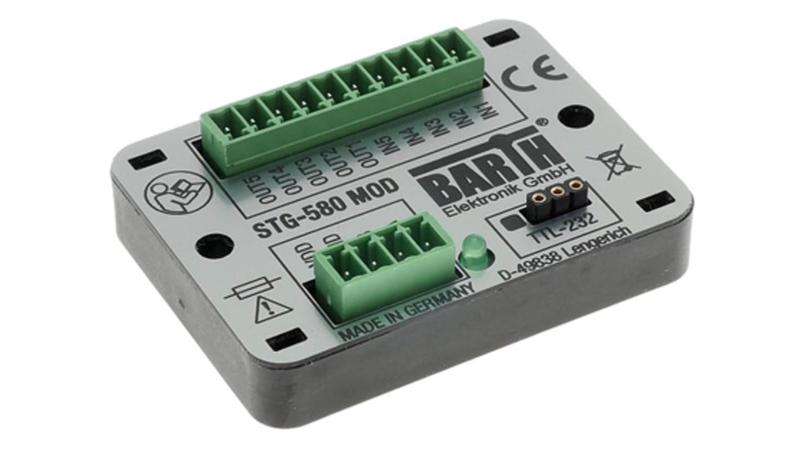

0850-0580 BARTH lococube mini-PLC PLC I/O Module - 5 Inputs, 6 Outputs, Digital, PWM, Solid State, For Use With STG-580

BARTH Logic Module_x000D_ The BARTH STG-580 MOD panel mount highly innovative Mini-PLC that extends the established Barth series of Mini-PLCs. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. The MODBUS interface allows you to connect various industrial network components to the mini-PLC. It has 3 analogues inputs, which can vary from 0VDC to 10VDC and 2 digital inputs up to 1kHz. This logic module has 4 power PWM outputs up to 1.5A and 1PWM power output up to 10Khz. This logic module can be easily programmed using miCon-L software, which does not require a difficult programming language._x000D_ Features and Benefits_x000D_ Open source programming option_x000D_ Wide operating voltage that ranges between 7VDC and 32VDC_x000D_ Operating temperature ranges between -40°C and 60°C_x000D_ Vibration resistant and rugged sealing_x000D_ TTL-232/USB connection to PC_x000D_ Graphically programmable MODBUS data_x000D_ Reliable solid-state output_x000D_ Fail-safe oscillator_x000D_ Programmable LED status_x000D_ Applications_x000D_ Industrial automation_x000D_ Building automation_x000D_ Automotive technology_x000D_ Environmental technology_x000D_ Process control
